Single phase generator - HECHT GG 3300

Single-phase petrol power generator. Power 7 HP. Continuous power 2600 W, maximum 3000 W. Operating time approx. 7 h. Tank 15 l. 2x socket. Read more ▼

Compare products

Product code: 007664

Single phase generator - HECHT GG 3300 Single phase generator - HECHT GG 3300

Product description

Benefits

  • single-phase electricity generator
  • 4-stroke single cylinder air-cooled engine
  • 2x socket 230V 16A, 1x socket 12V DC, voltmeter
  • starting by means of a starting cable by hand
  • high quality alternator
  • AVR (automatic voltage regulation) included
  • including protection prevents overloading and lack of oil
  • 15 litre metal fuel tank resistant to mechanical damage
  • fitted with rubber silent blocks to dampen engine vibration
  • the most popular generator in our range

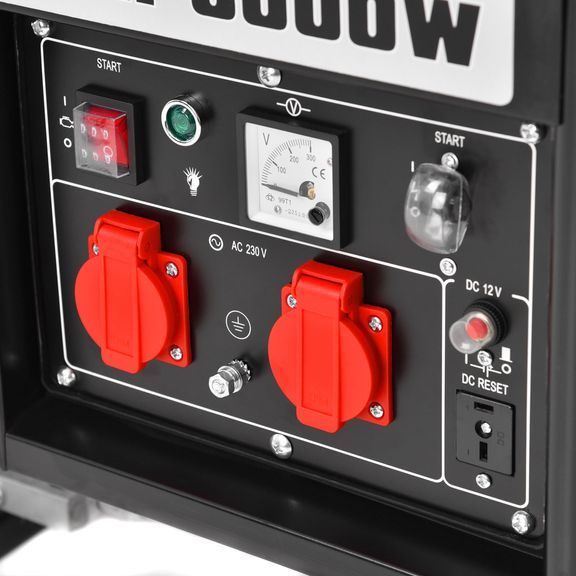

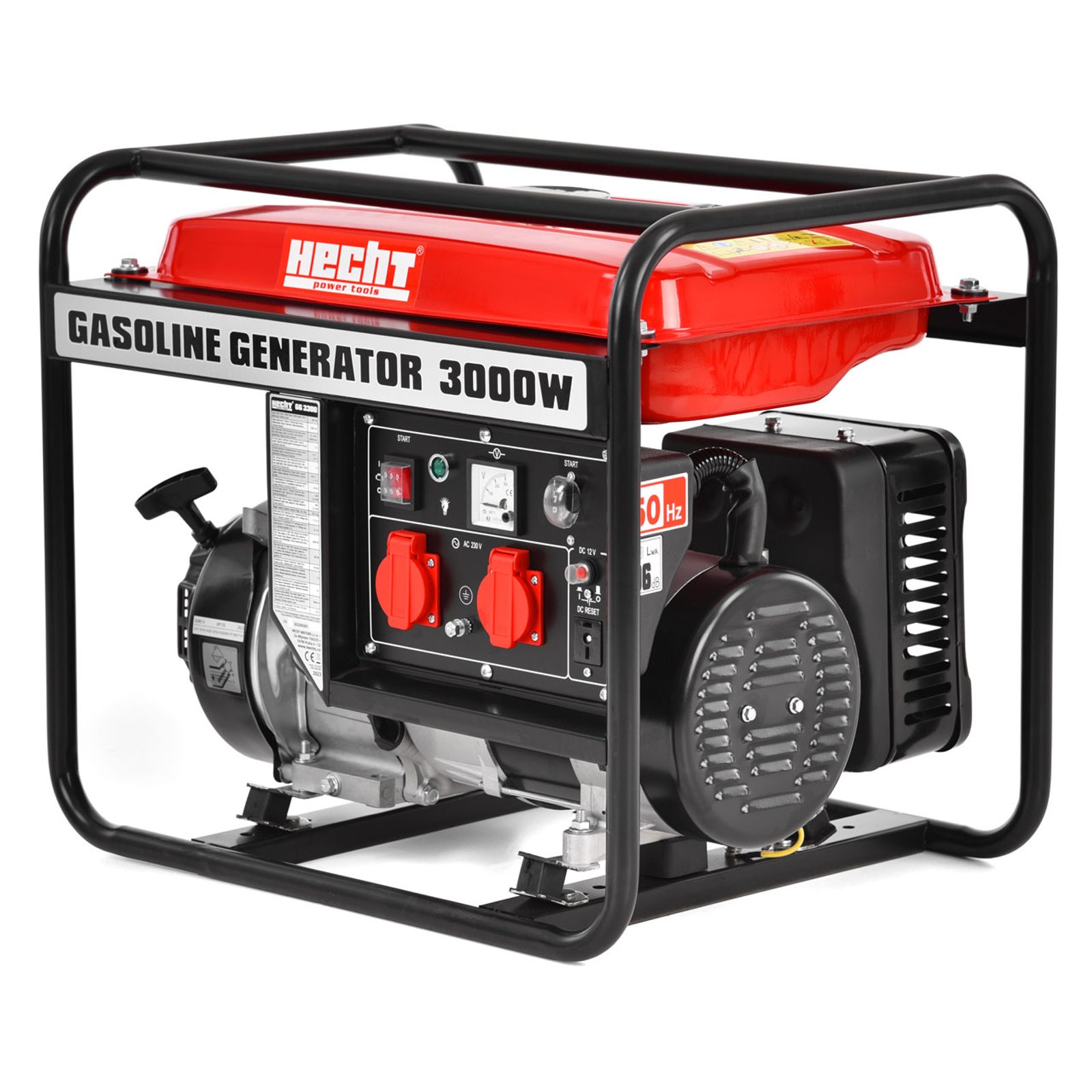

HECHT GG 3300 is a medium-sized petrol-powered electric generator, powered by a four-stroke 7 HP 208 cc engine. There is a control analogue voltmeter on the generator's electrical panel and a pair of classic sockets for connecting 230 V / 50 Hz appliances, among which there is also a safety terminal for connecting the earth cable. Both sockets are protected against overload by a circuit breaker. In addition, there is one 12 V DC socket on the panel for the connection of 12 V appliances, which can also be used for charging some types of 12V batteries. However, it is not equipped with charge regulation, so it is necessary to continuously check the battery charge status and disconnect it in time. This 12V socket is also equipped with a safety device.

The permanent power of the control panel is 2600 W, for short periods, For example, the starting currents of some appliances can be loaded up to a maximum power of 3000 W.

The generator is fixed in the base frame by rubber blocks which dampen the transmission of vibrations. It can be conveniently carried behind this frame and its weight is 46.5 kg. The noise level produced is 96 dB.

The generator is equipped with AVR regulation (Automatic Voltage Regulation), which prevents voltage fluctuations when loading of the central station changes.

The generator has a fuel tank with a capacity of 15 l. It is ideal as a back-up power supply in case of calamity, it will also serve well in places where the power grid is not available. It can also be used as a backup for powering the circulation pumps of some solid fuel boilers, etc.

The voltage output characteristics of the power plant are different from those of the usual power grid. Therefore, we strongly recommend you to consult the manufacturer or dealer of certain electronic devices (e.g. computers, modern TVs, etc.) about their power supply options. Some electrical equipment may draw several times the normal operating current for a short period of time when started up; for appliances such as electric motors and other devices using induction, this may be more than three times the normal power for a short period of time. As a rough guide, the so-called starting coefficient can be used for the calculation, which must be multiplied by the normal input power of the connected appliance. Then, for example, we multiply appliances such as a hair dryer, heat gun, fryer, blender, oven, iron, toaster, vacuum cleaner, table lamp by 1. Coefficient 2 is then generally applied to electric lawnmowers, angle grinders, hedge trimmers, electric saws, washing machines, etc. For compressors, pressure washers, concrete mixers, a coefficient of 3 usually applies; for refrigerators, freezers or air conditioners, the coefficient may exceed 3. In practice, we can roughly calculate that an appliance with an input of 600 W and a coefficient of 2 requires a maximum central power of at least 1 200 W.

Average fuel consumption:

At 50% load - 1,018 l/h

At 100% load - 1,665 l/h



(Údaje o výkonech motorů jsou měřené při 3600 ot/min-1. Tohoto výkonu stroj při běžném použití nedosáhne. Pro přesné porovnání výkonu motoru použijte údaj o obsahu a typu motoru.)
