Product description

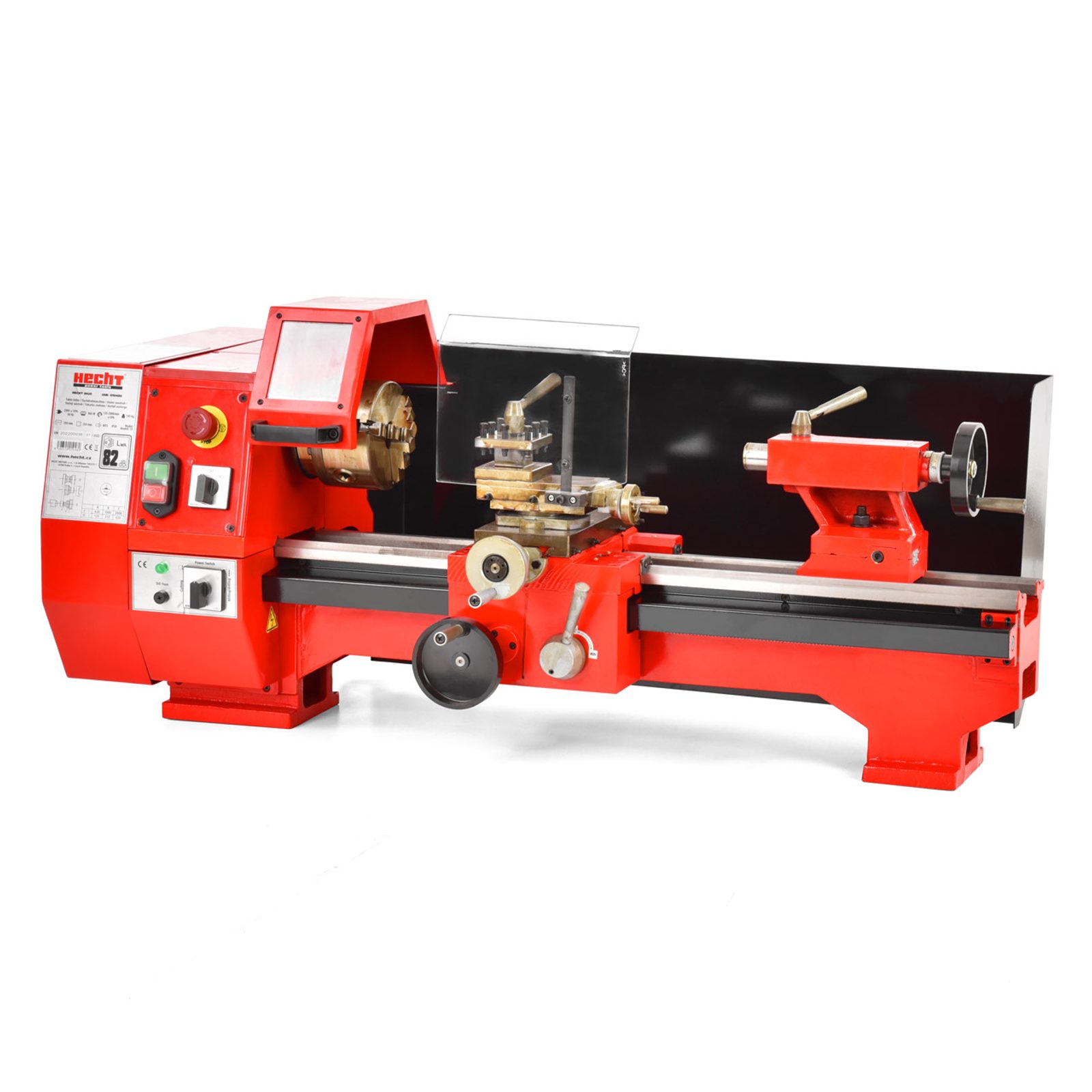

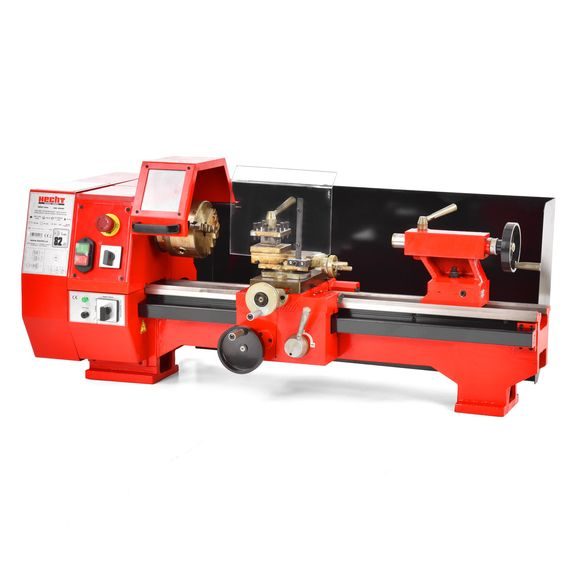

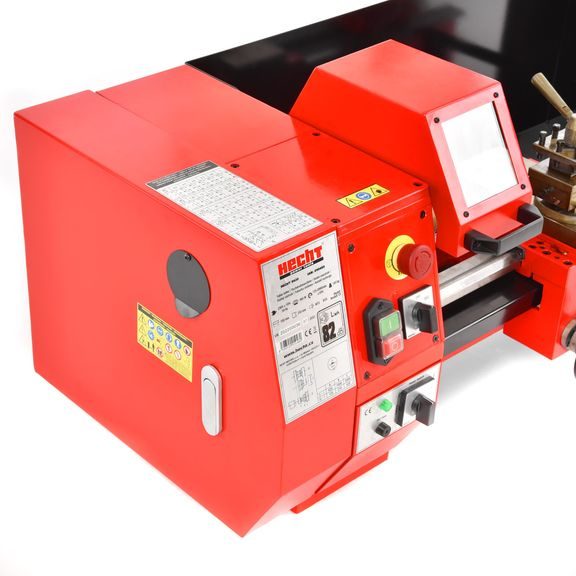

Table lathe designed for internal and external turning of workpieces up to 250 mm diameter and 550 mm max. length. The spindle speed can be set in six speeds: 125, 210, 420, 620, 1000 and 2000 rpm. The speed is selected by moving the belt on the pulleys.

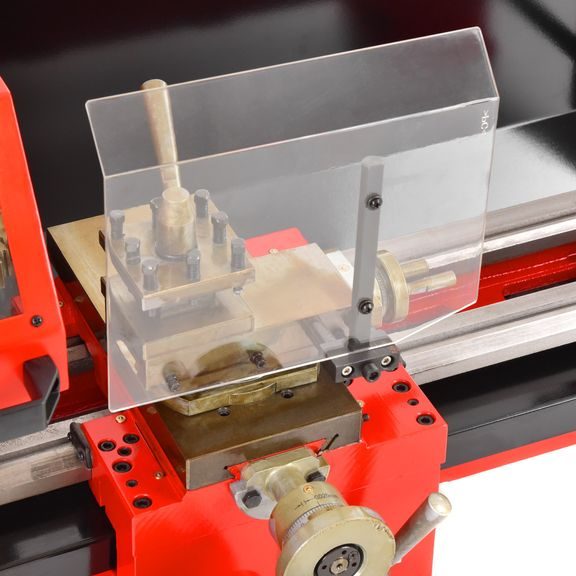

Stable precision ground sleds and automatic longitudinal feed allow thread cutting, the feed speed is selected by changing the gears. Metric threads can be cut in the range of 0.4 - 3 mm (12 degrees) and inch threads can be cut in the range of 10 - 44 (8 degrees).

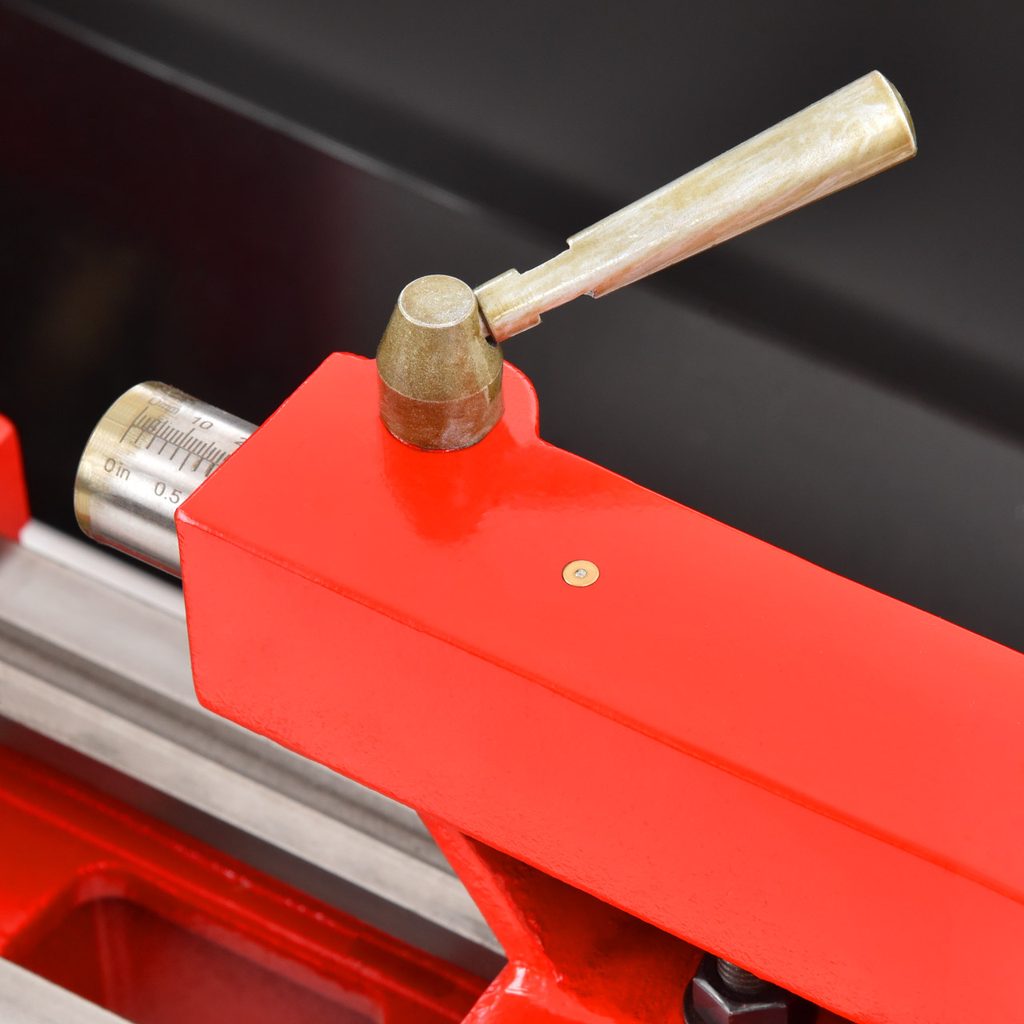

MT3 spindle taper, MT2 tailstock taper.

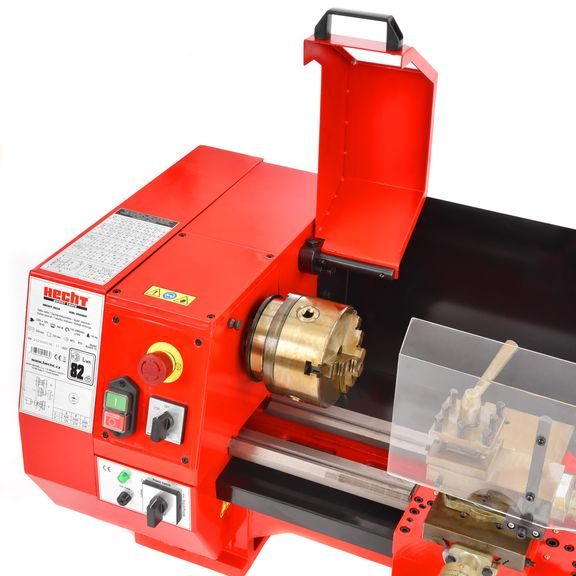

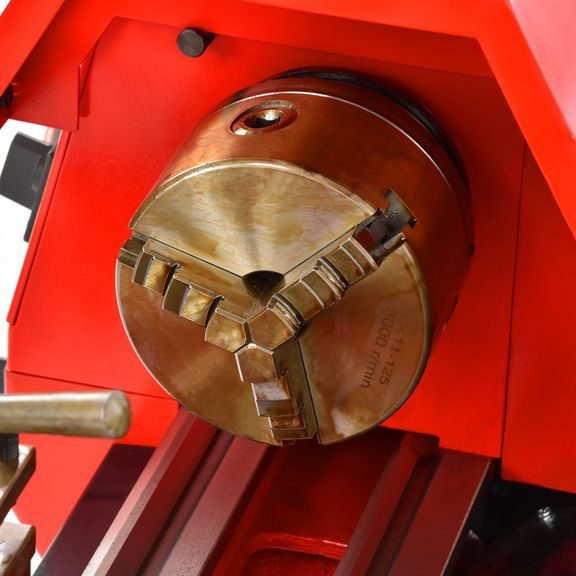

Also included is a set of gears, 3 jaw chuck, interchangeable jaws, wrench set and oil pan.

Parameters

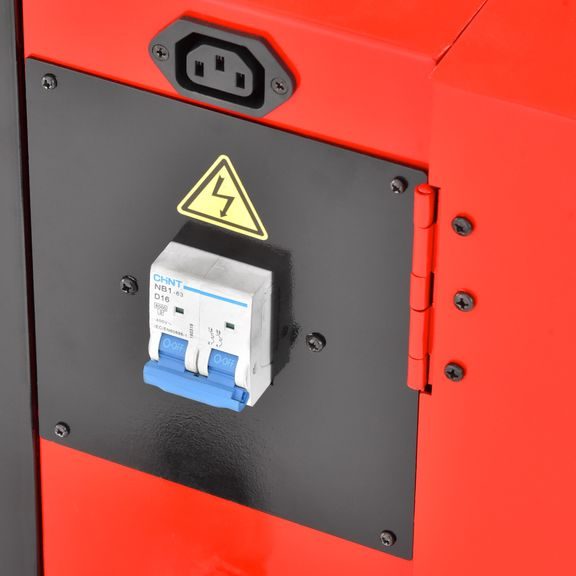

voltage	230 V/50 Hz
power consumption	550 W
no-load speed	125-210-420-620-1000-2000 ot/min
spindle cone	MT3
cone of the grasshopper	MT2
max. workpiece diameter	250 mm
distance between centres	550 mm

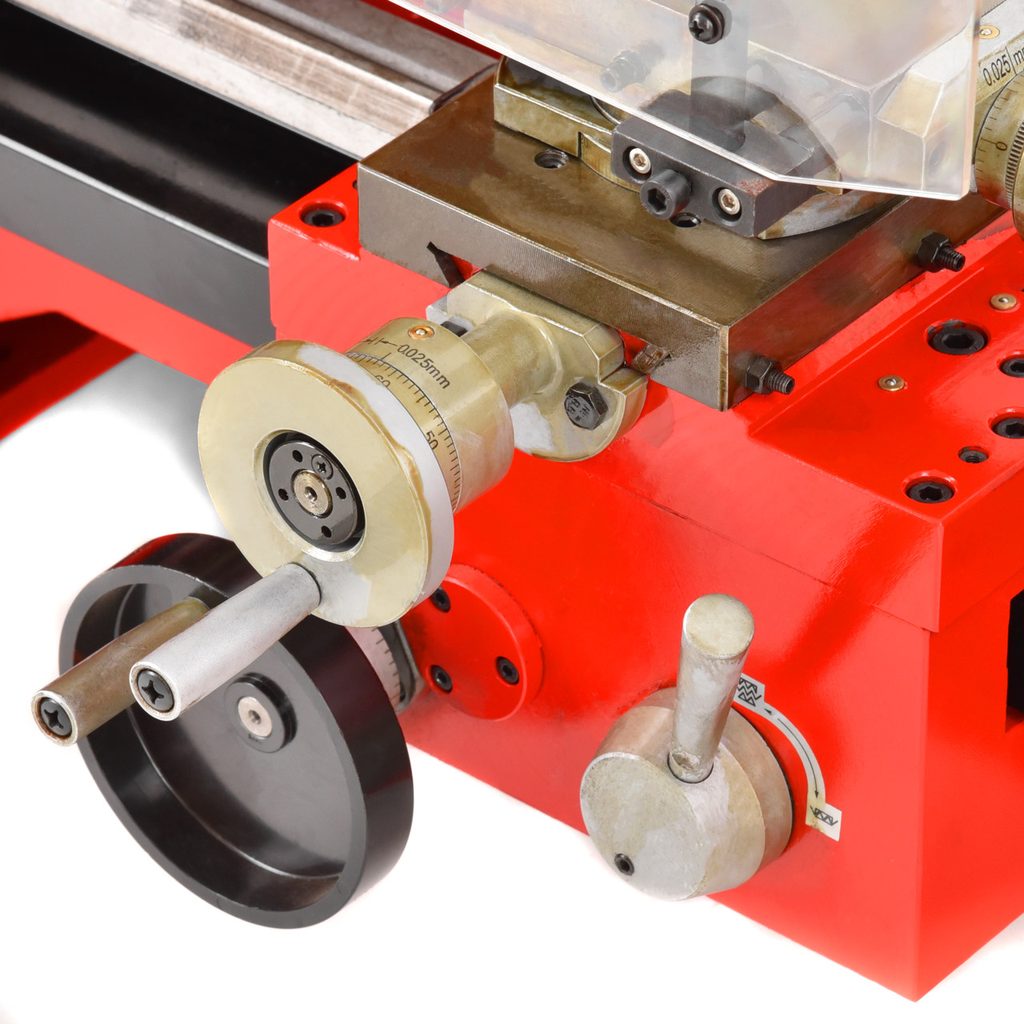

cross feed	110 mm
combined feed	75 mm
width	114 cm
length	60 cm
height	45 cm
weight	145 kg
