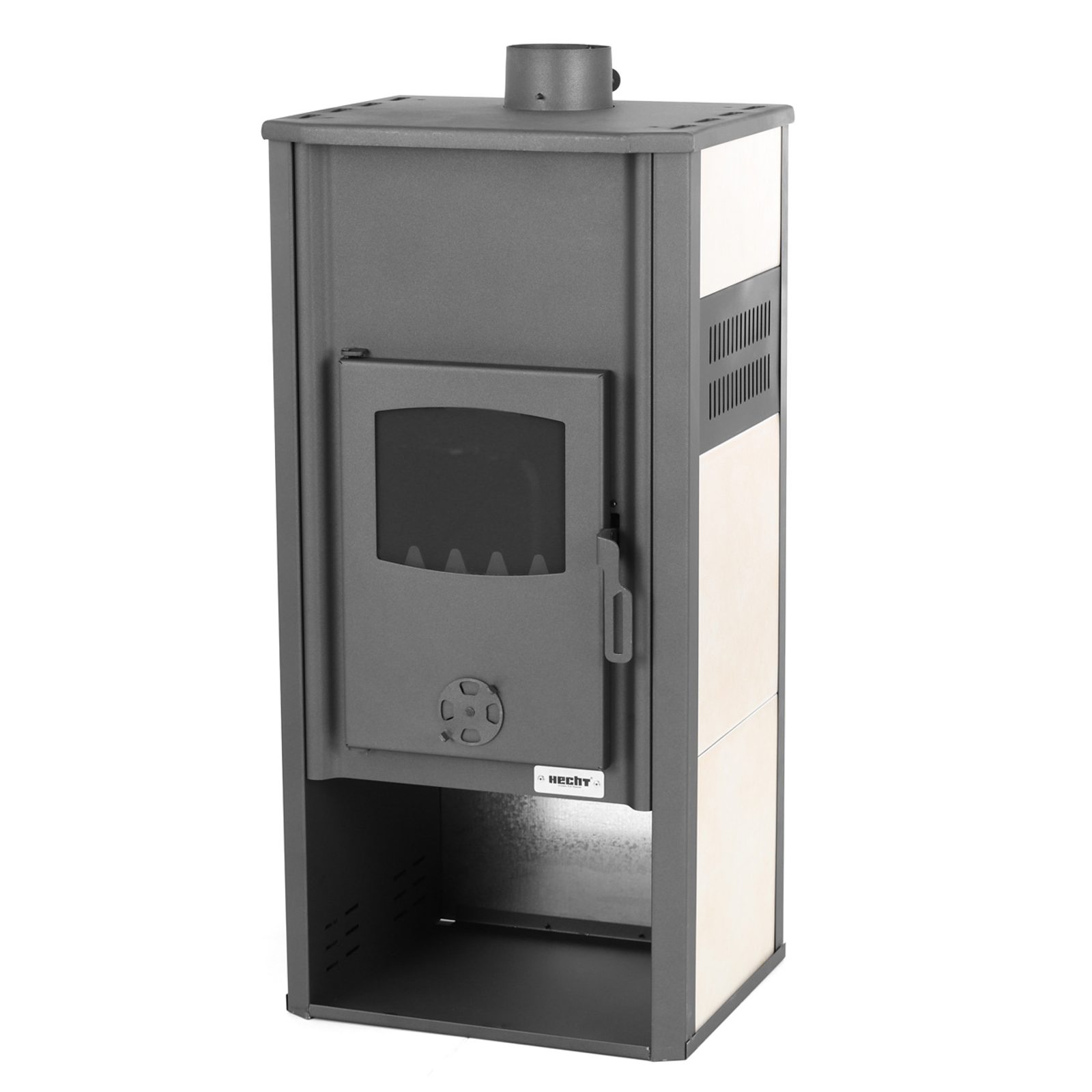

Fireplace Stove - HECHT MAGNIS

Steel wood-burning fireplace stove with water heat exchanger and maximum heating output of 20 - 22 kW (15 - 17 kW to water).

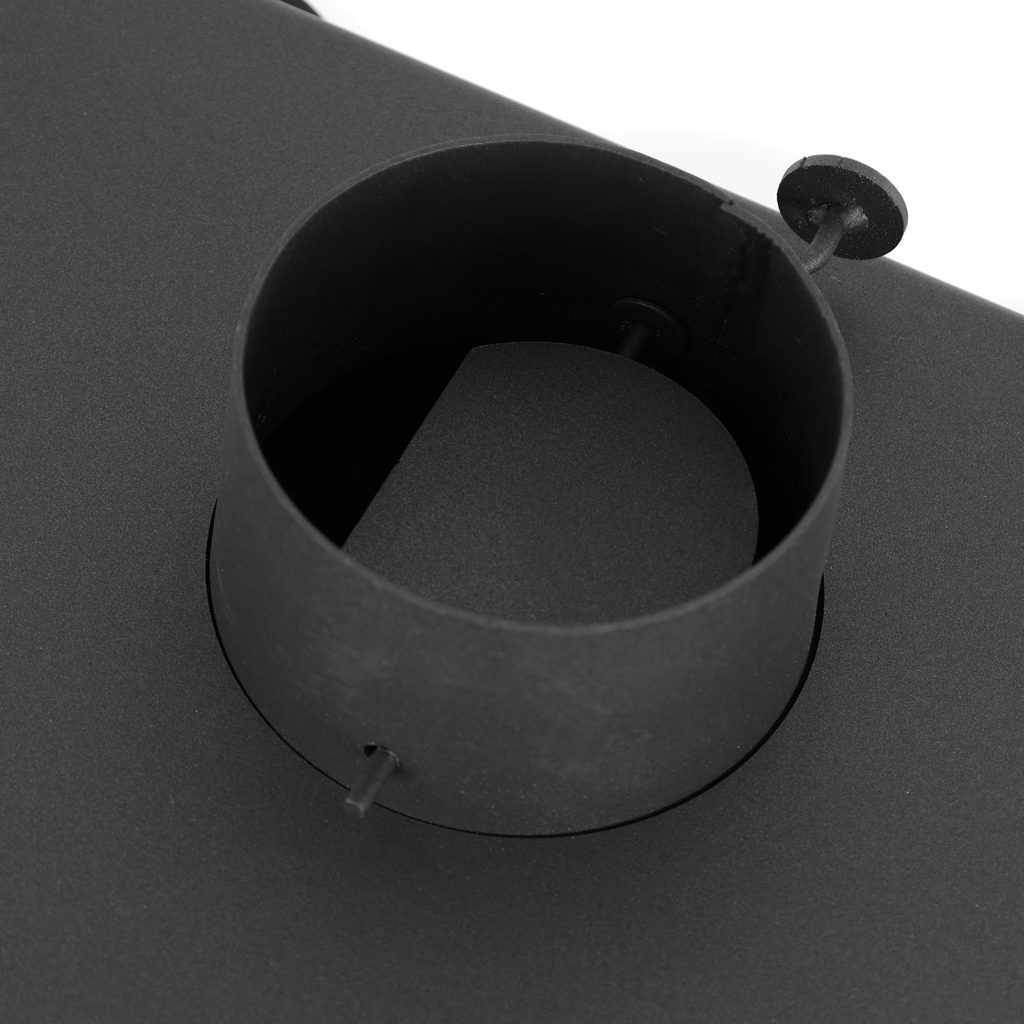

• Flue pipe Ø 120 mm
• Max. operating pressure 2.5 bar
• Heat exchanger volume 22 l
• Heat-resistant glass up to 750 °C

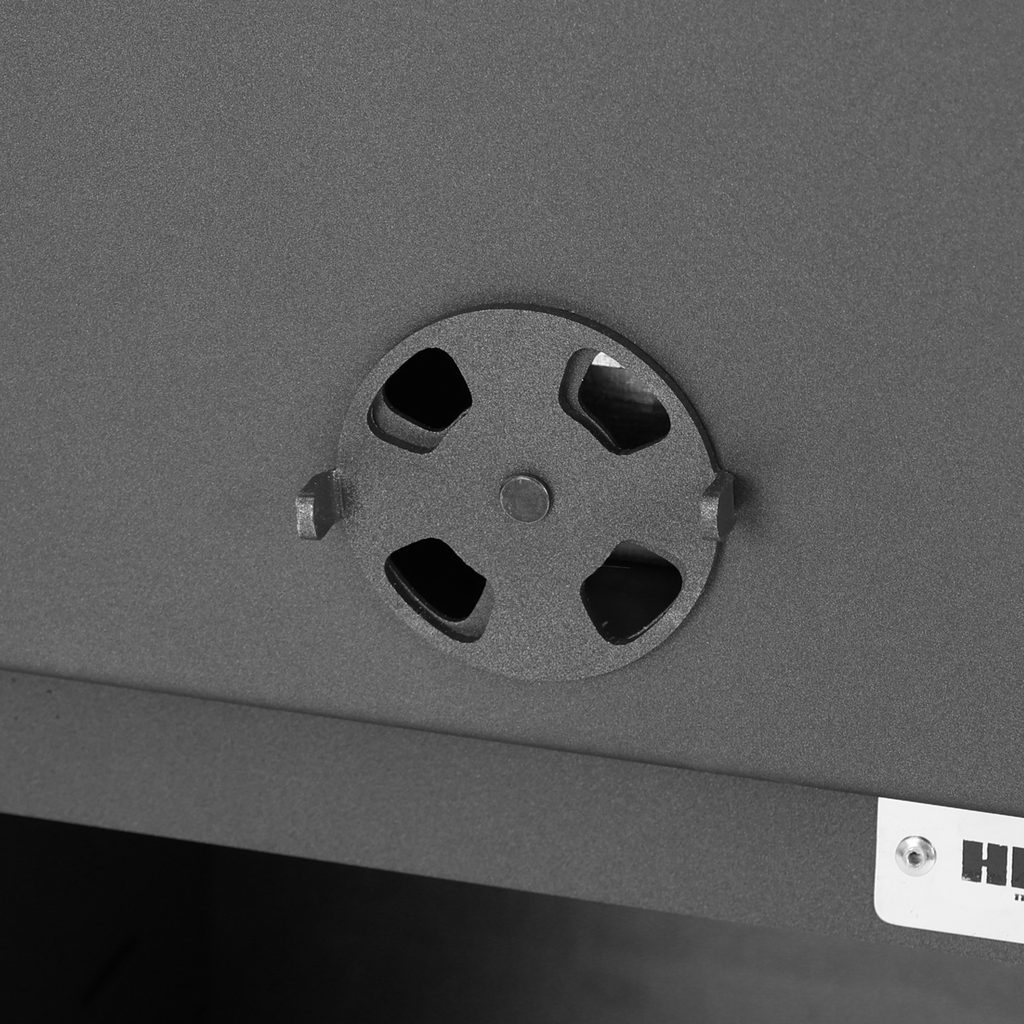

• Air flow adjustment
• Top flue outlet
• Air intake regulation
• Flue outlet regulation

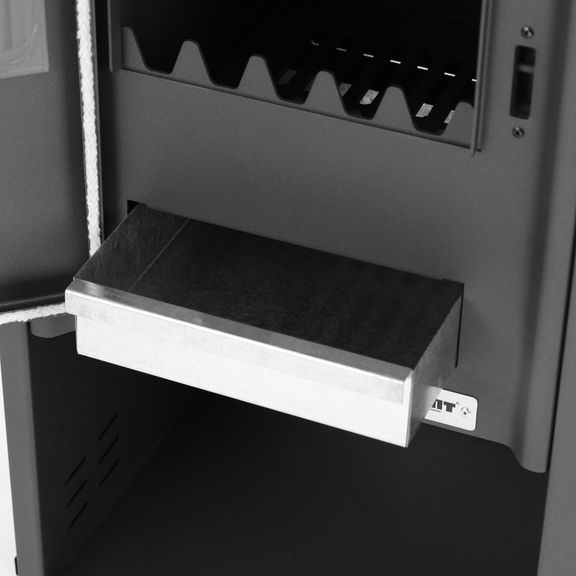

• Deflector, ash pan
• Cast iron grate
• Combustion efficiency 78%

Heating output: 20 - 22 kW (15 - 17 kW to water)
Firebox dimensions: 310 x 300 x 530 mm
Overall dimensions: 485 x 455 x 1070 mm
Weight: 90 kg
Material: steel, ceramic
Recommended fuel: wood, wood briquettes

The stove can only be operated with the heat exchanger connected to a heating system, otherwise there is a risk of damage.

Made in Europe.
