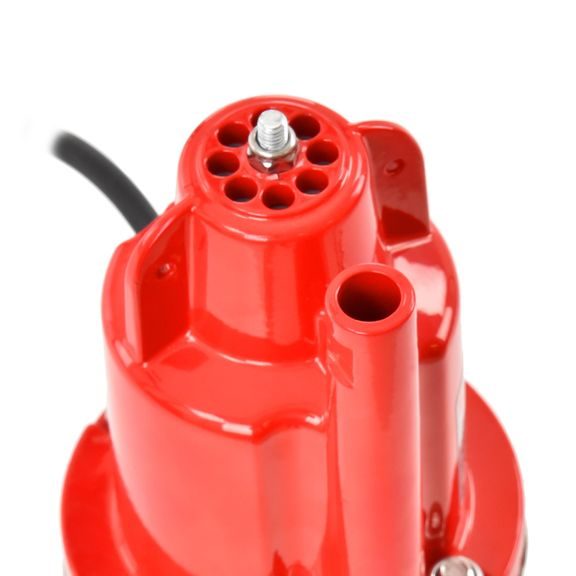

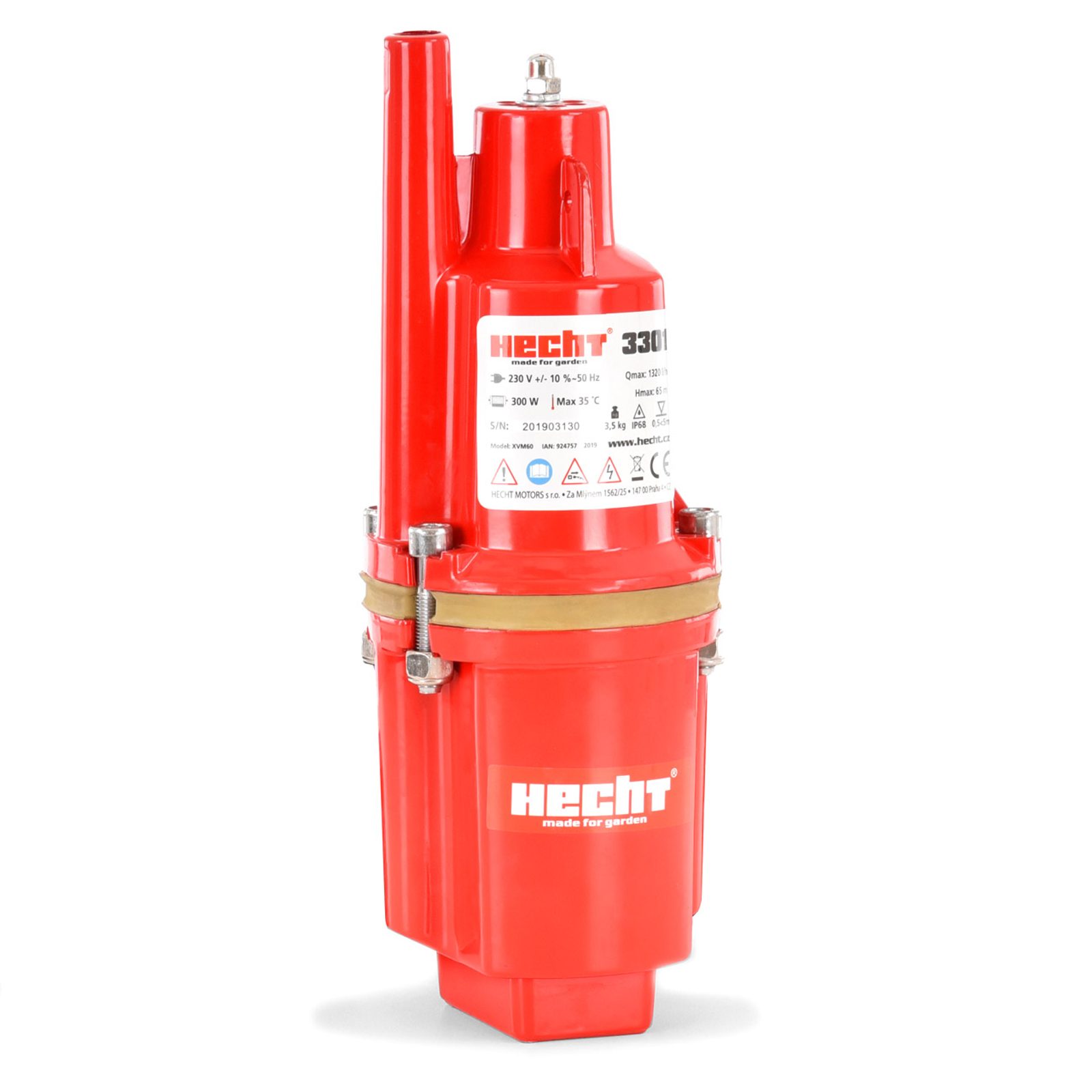

Submersible pump - HECHT 3301

Submersible vibrating pump with a transfer volume of 1400 l/hr. Max. discharge 55 m. Power input 300 W. Cable length 10 m. 3/4" flange. Read more ▼

Compare products

Producer: Hecht  |  Product code: HECHT3301

Submersible pump - HECHT 3301 Submersible pump - HECHT 3301

Product description


  • Power input 300 W
  • Vibrating pump
  • 110 mm borehole pump
  • Suitable for drilled wells
  • For clean drinking water
  • Steel casing
  • Pump overload protection
  • 10 m supply cable
  • Maximum displacement 55 m
  • Maximum flow rate 1400L/h
  • Maximum immersion depth 5 m

Vibrating garden pump can be used for driling wells from a diameter of 110 mm. The length of the supply cable is 10 m, the maximum discharge is 55 m and the power is 300 W. The flange diameter is for 3/4" hose. The outer diameter of the pump is 10 cm. The pump is designed exclusively for pumping clean domestic water.

The pump is top suction. This means that the suction holes are on the top of the pump. This minimises the risk of dirt being sucked in from the bottom. At the same time, however, a water column of at least 50 cm above the pump is necessary for the pump to function properly. Therefore, the pump is not suitable for pumping water from tanks, as it cannot pump water to the bottom. Another reason for the unsuitability of the pump for pumping water from surface tanks is the higher noise level, which is due to the principle on which the pump is based, i.e. vibration. In deep wells and boreholes, however, the noise is inaudible and, on the contrary, the pump's vibration principle results in a discharge of up to 55 m. This pump is therefore suitable for pumping water from deep wells and boreholes for irrigation, etc. The pump is designed for pumping clean water only. Vibrating pumps are generally sensitive to any impurities that would cause the valves to leak.

Maximum pump diameter: 105 mm

Read more


Drive Electric motor
Engine Electric 230 V/50 Hz
Power input 300 W
Max. delivery volume 1,4
Max delivery height 55 m
