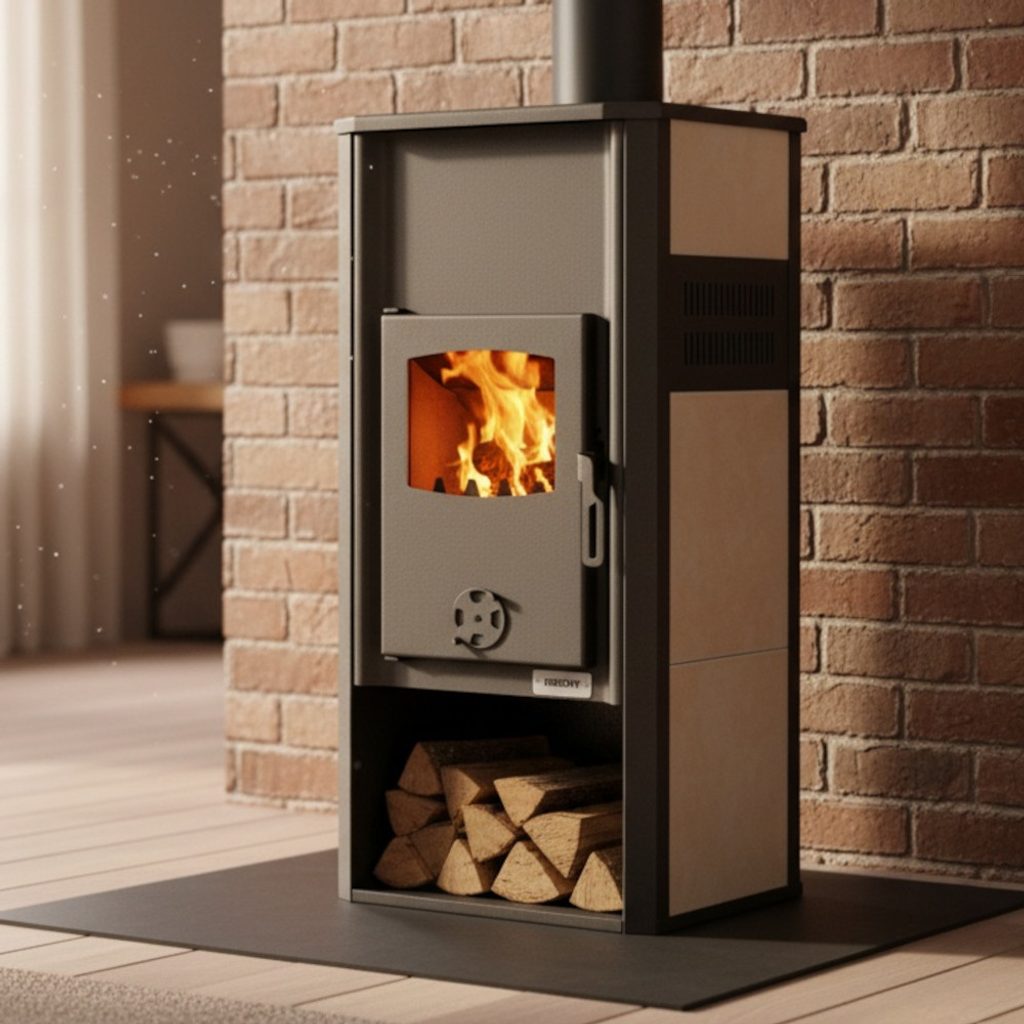

Steel wood-burning stove with hot-water heat exchanger, refractory glass door and maximum heating capacity 20-22 kW (for water 15-17 kW). Flue pipe 120 mm. Weight 90 kg. Read more ▼

Compare products

Product code: HECHTMAGNIS

Description
Parameters

Product description

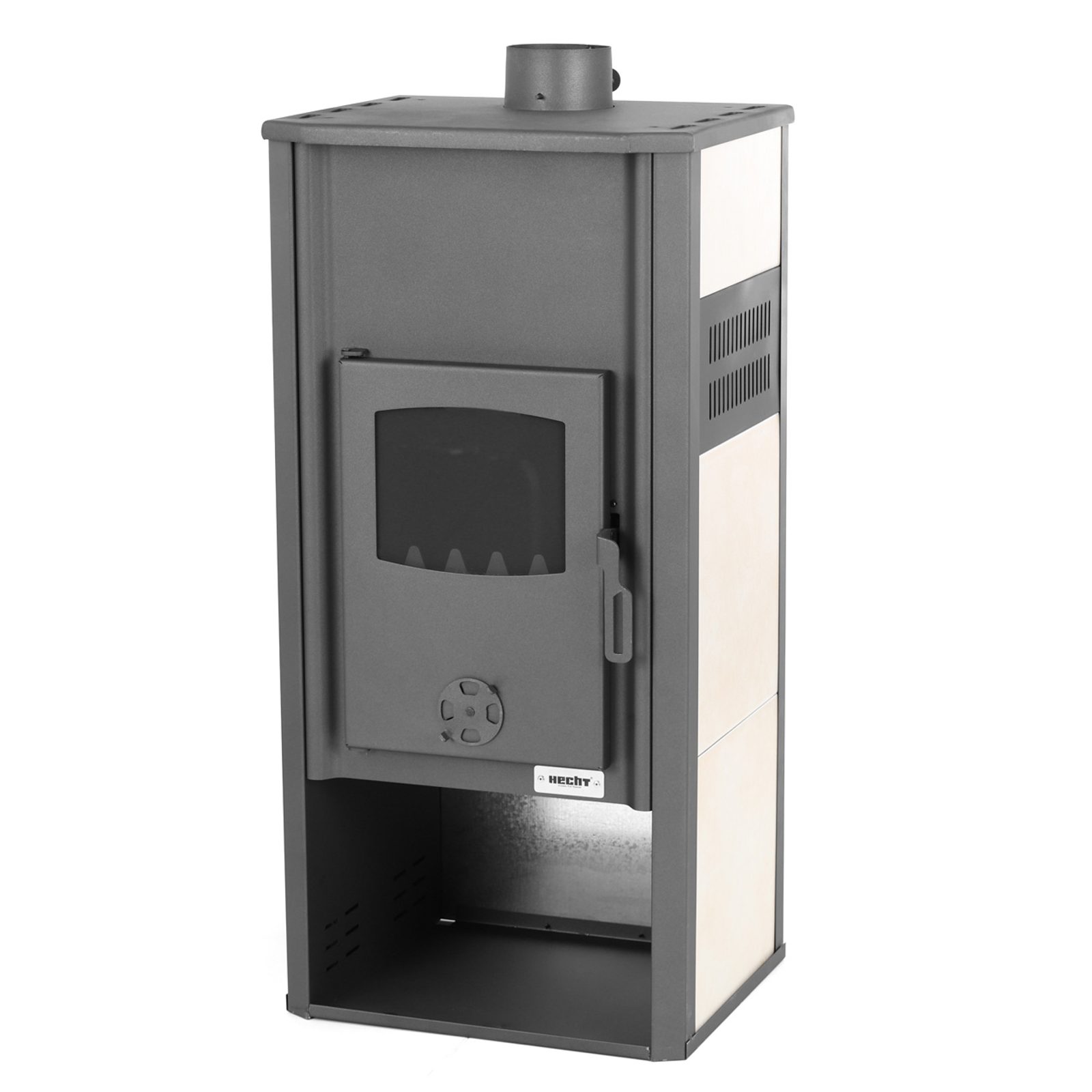

Steel wood-burning stove with hot-water heat exchanger, refractory glass door and maximum heating capacity 20-22 kW (for water 15-17 kW). Flue pipe 120 mm. Weight 90 kg.

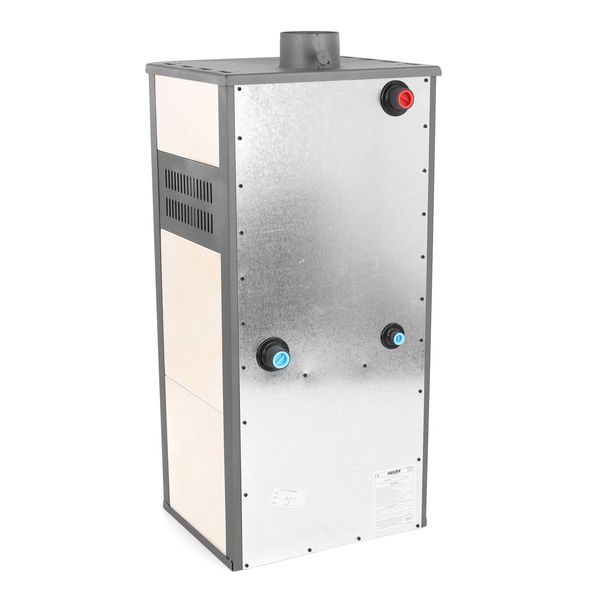

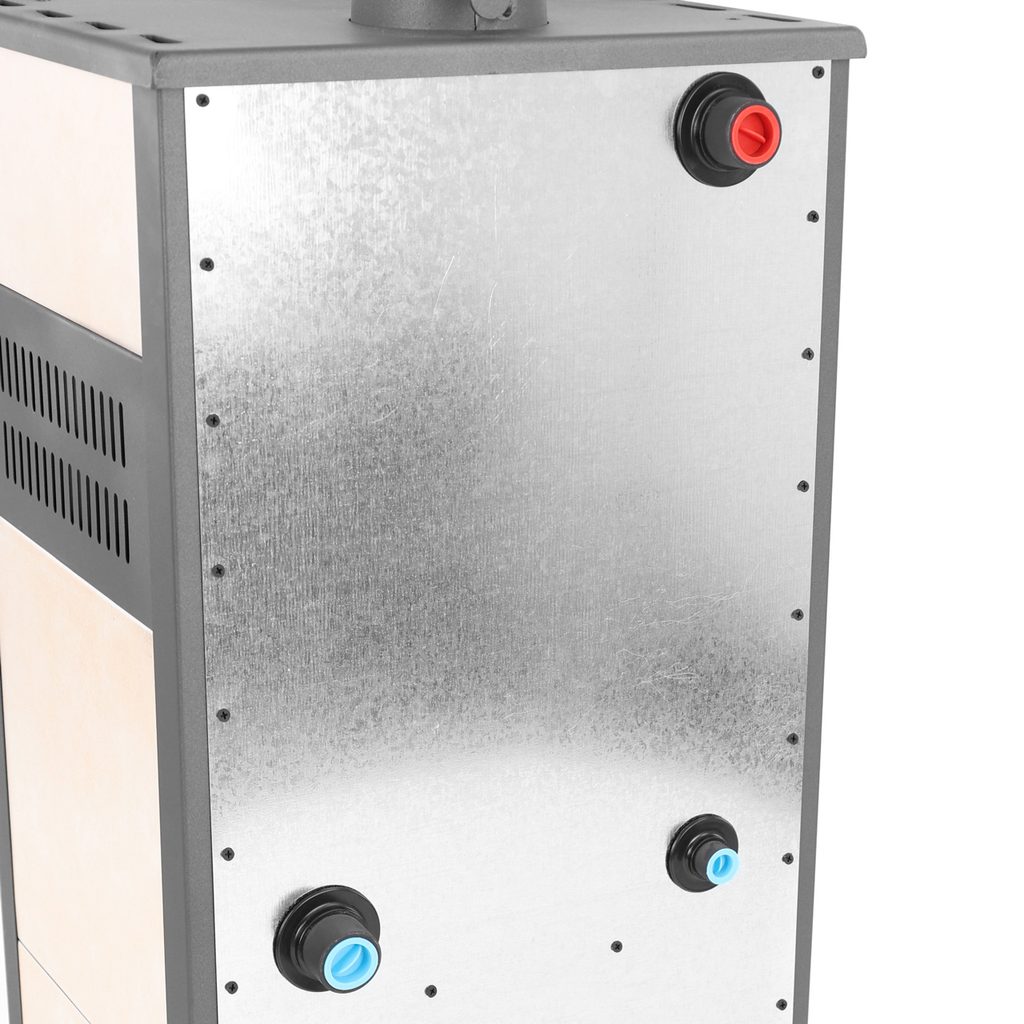

Heat exchanger, volume 22 litres
Max. operating pressure 2.5 bar

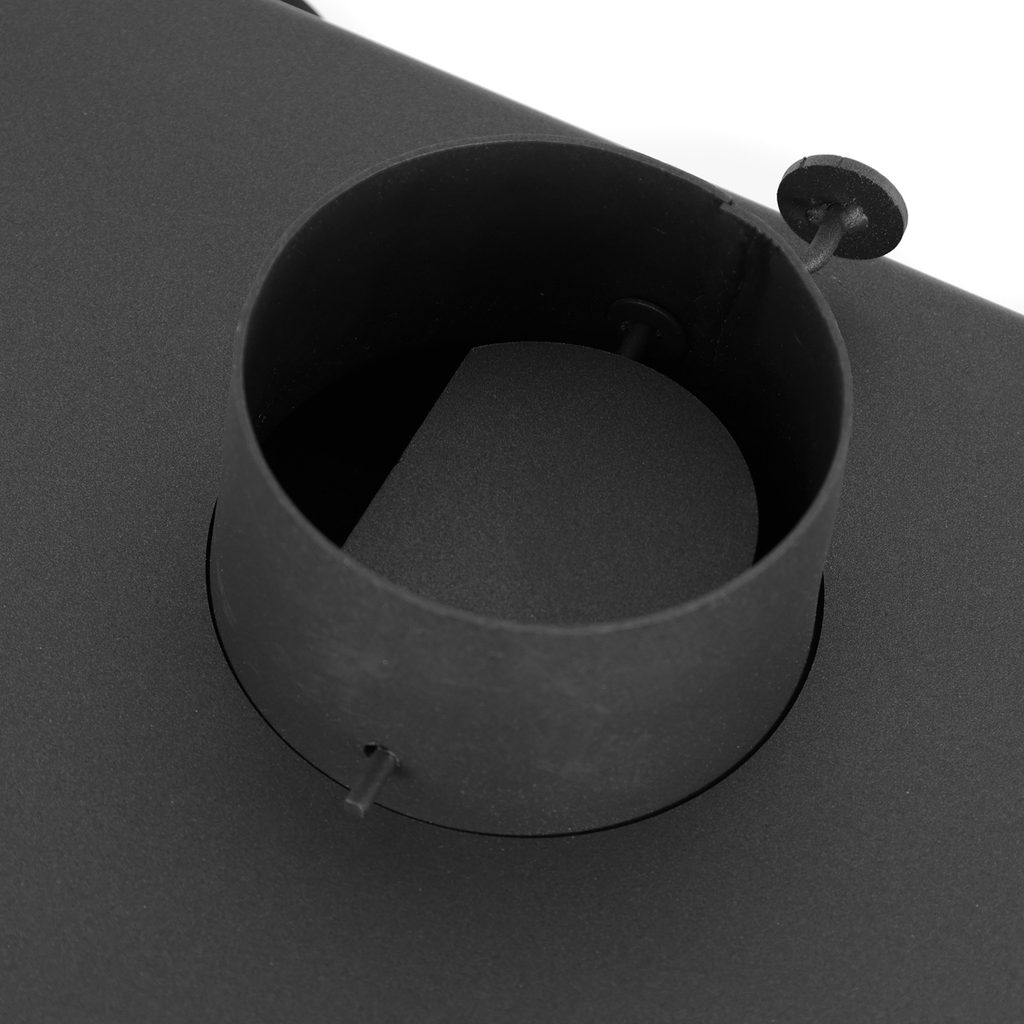

Flue pipe Ø 120 mm

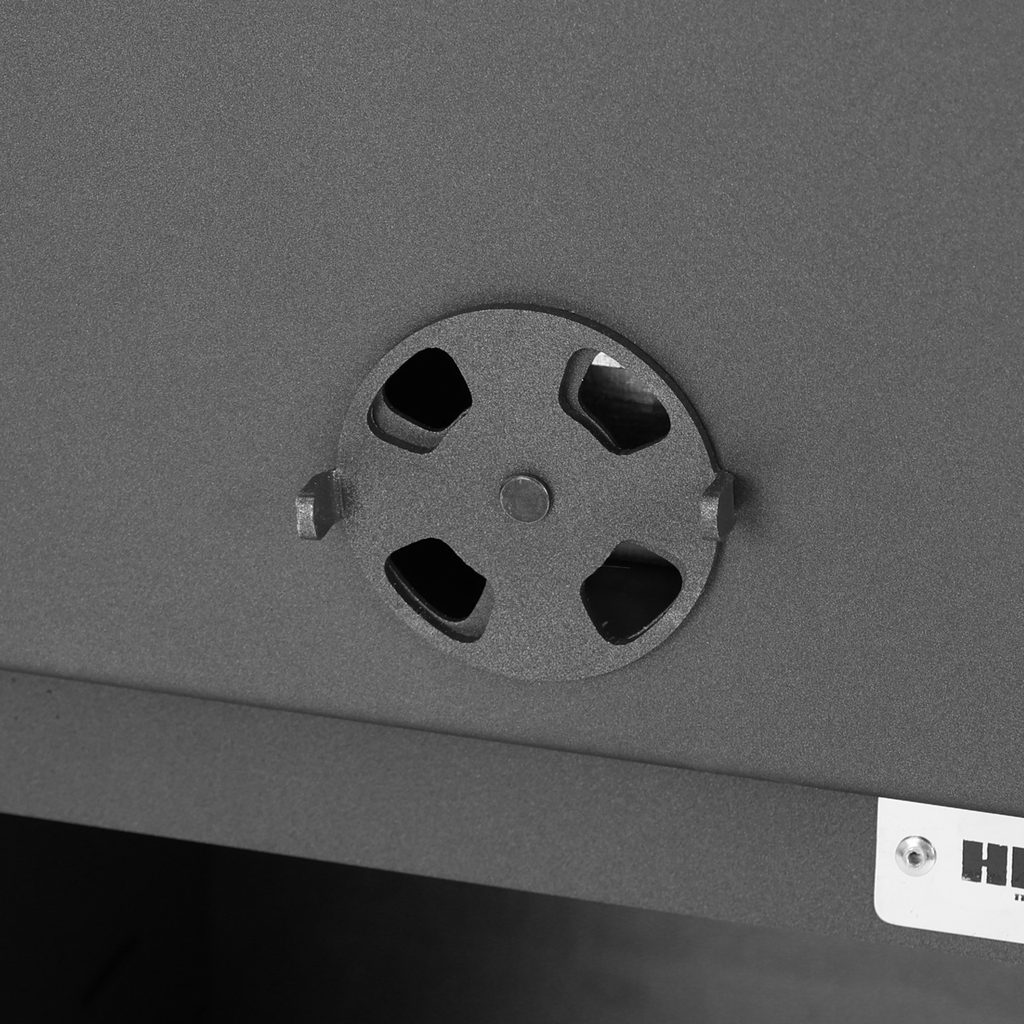

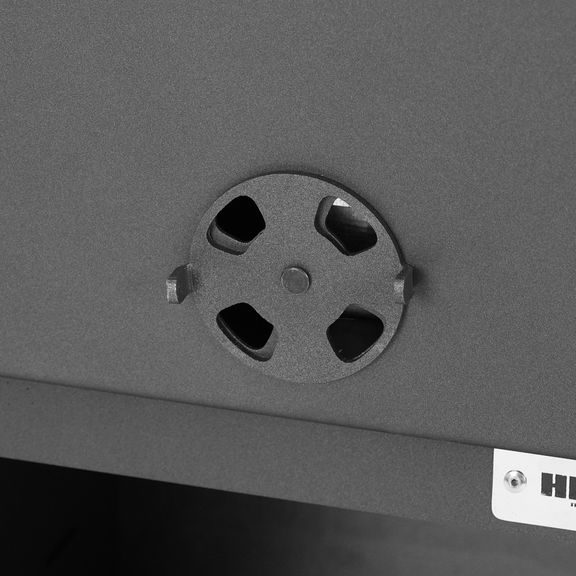

Air flow adjustment

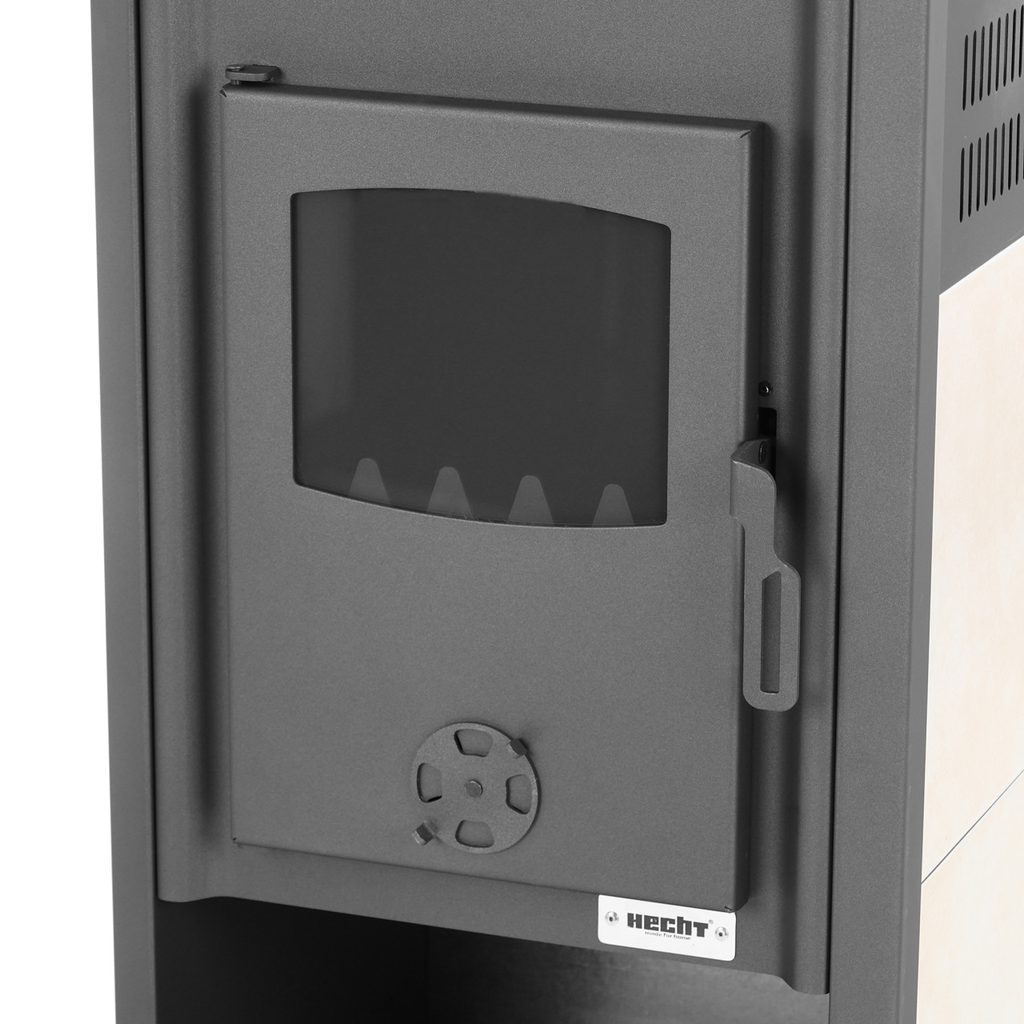

Refractory glass
Upper flue outlet
Cast iron grate

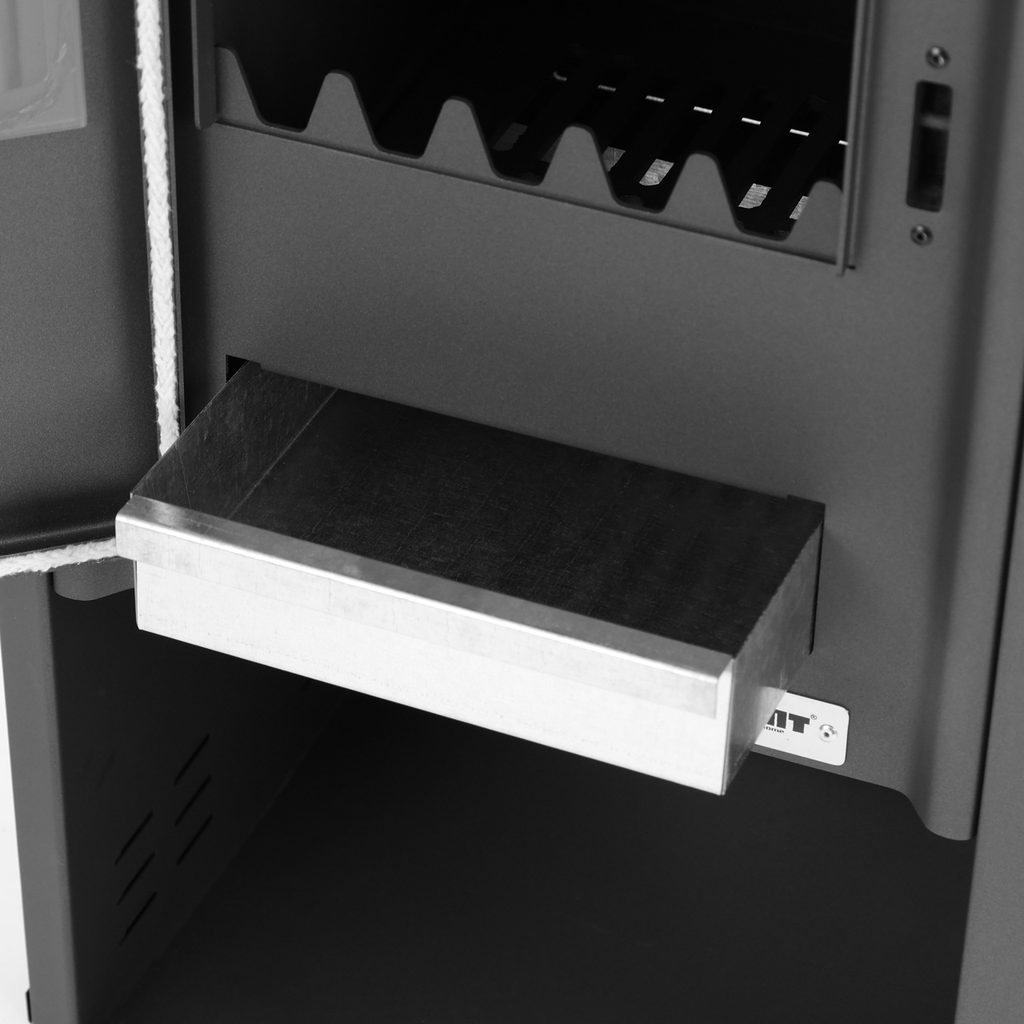

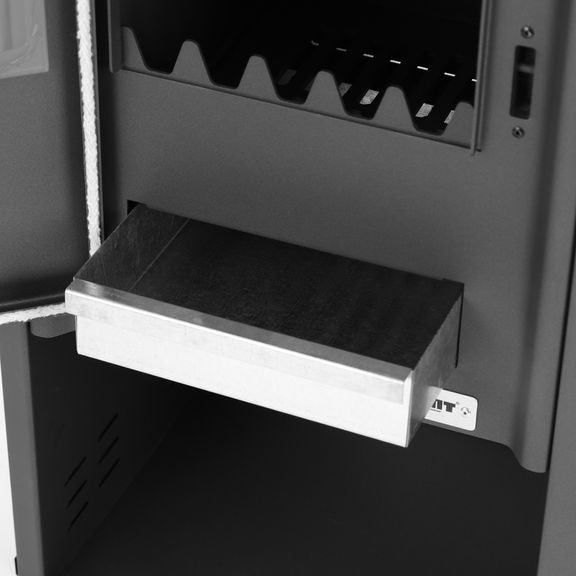

Firebox dimensions 310 x 300 x 530 mm. Total dimensions 480 x 455 x 1070 mm. Chimney outlet control, deflector, ash pan. Supplied fuel: wood, wood briquettes.

The stove can only be operated with the heat exchanger connected to the heating system, otherwise there is a risk of damage.

Read more

Parameters

Weight (kg)	90
Width (mm)	485
Lenght (mm)	455
Height (mm)	1070
Průměr kouřovodu (mm)	120
Topný výkon (kW)	20 - 22 kW
