ROBOTIC MOWER WITHOUT PERIMETER WIRE

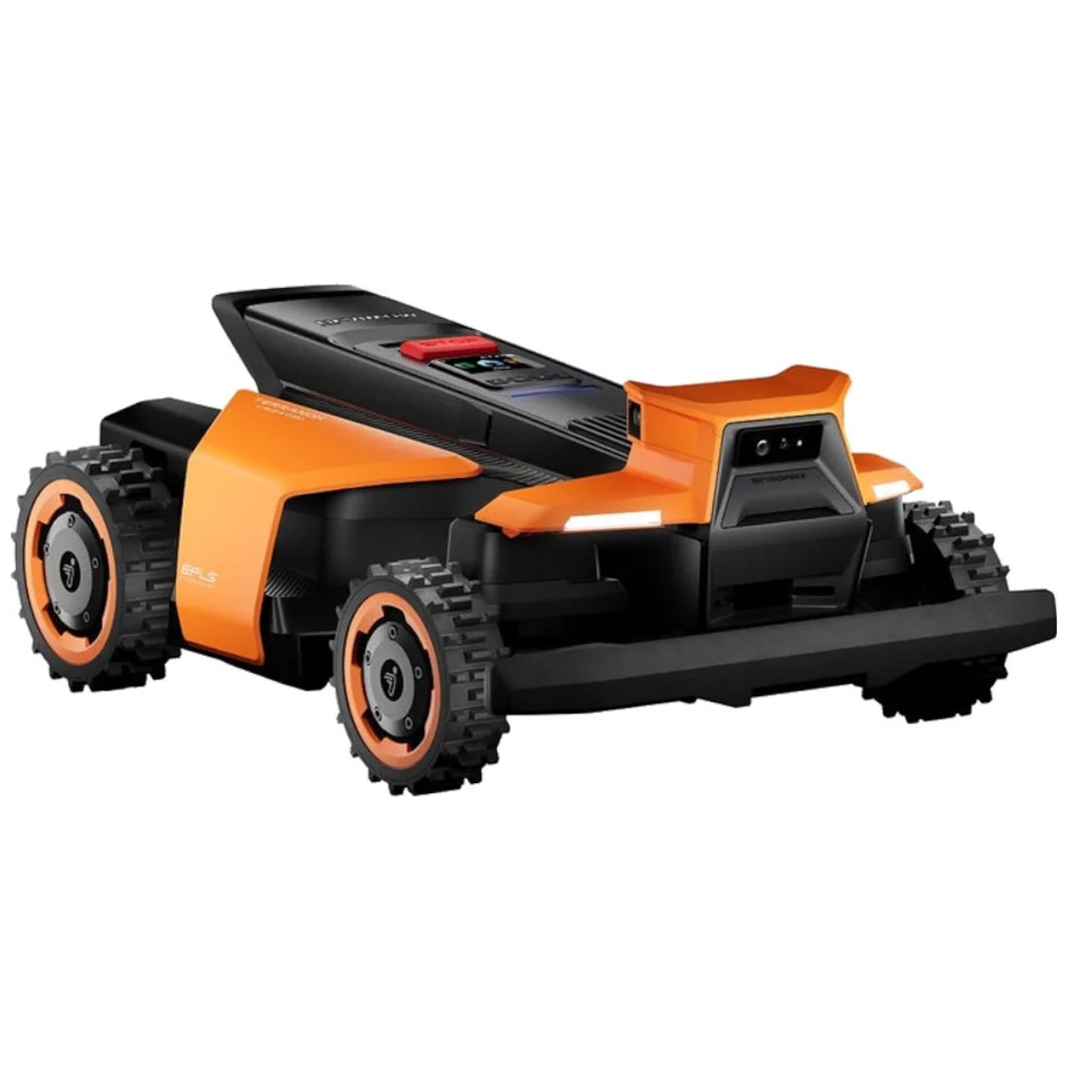

Terranox CM120M1E
Professional lawn care.
Large areas under control.
Up to 12,000 m²
No perimeter
wire
Slopes up to 84%
360° VisionFence™
EFLS™ NRTK / network RTK + 360° vision
Precise navigation
in every direction
EFLS™ NRTK combines network RTK, 360° camera vision and VIO visual odometry. It maintains precise orientation even on extensive, complex sites and when network RTK is available, it operates without an external antenna.
NRTK
network positioning
VSLAM
360° visual mapping
360 °
panoramic scanning
3 cameras
surroundings overview
IT STARTS SIMPLY
Your site. Your boundaries.
Using automatic mapping, you create a precise site map without perimeter wire. In the app, you set boundaries, no-go zones and passages between individual zones. Network RTK enables installation without an antenna if the service is available; otherwise, you can use the GNSS antenna from the package.
In the Navimow app, you can clearly manage up to 120 zones, adjust their boundaries, schedule mowing and customise cutting height for individual lawn sections. Electric adjustment offers a range of 20–95 mm.
Connect
charging station
Start
auto mapping
Fine-tune
zones and plan
You can clearly check the map on your phone and adjust boundaries and individual zones as needed.
4×4 DRIVE FOR DEMANDING TERRAIN
Xero-Turn™ AWD handles slopes too

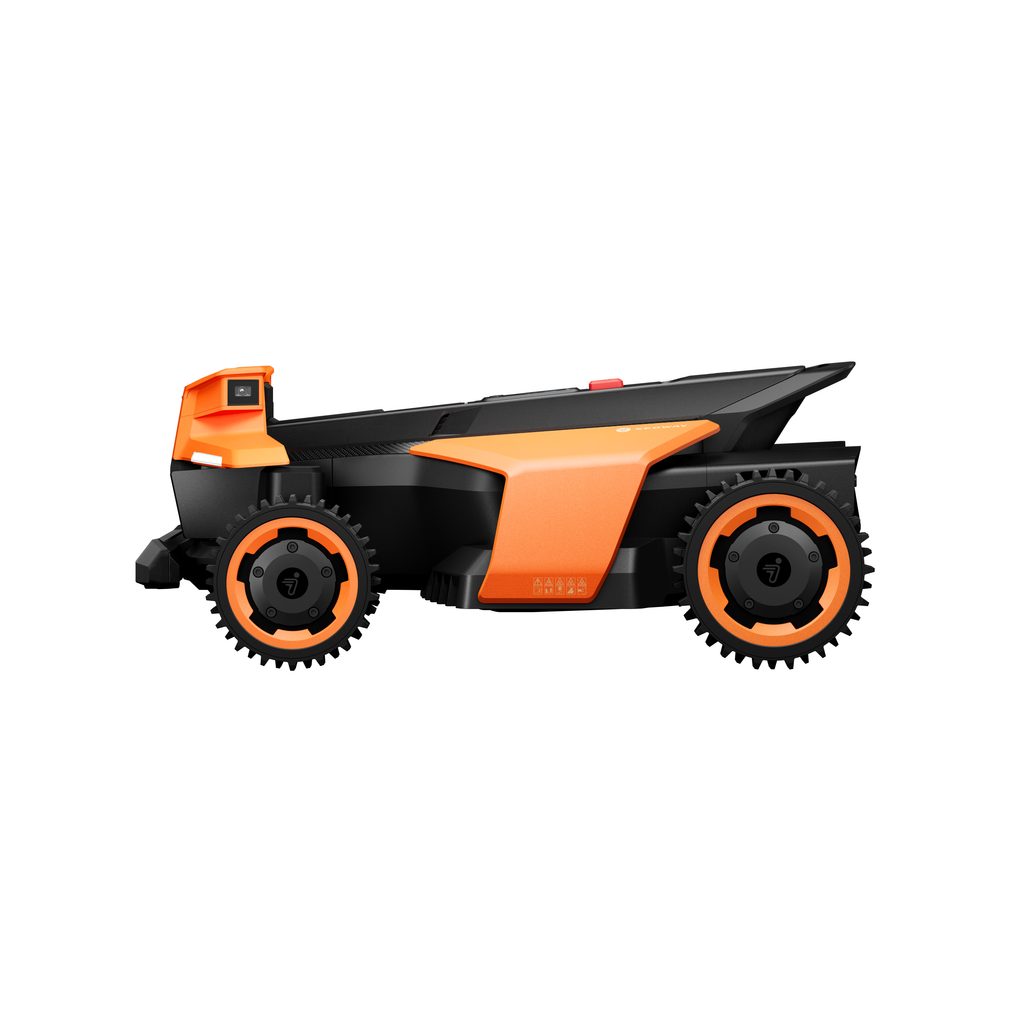

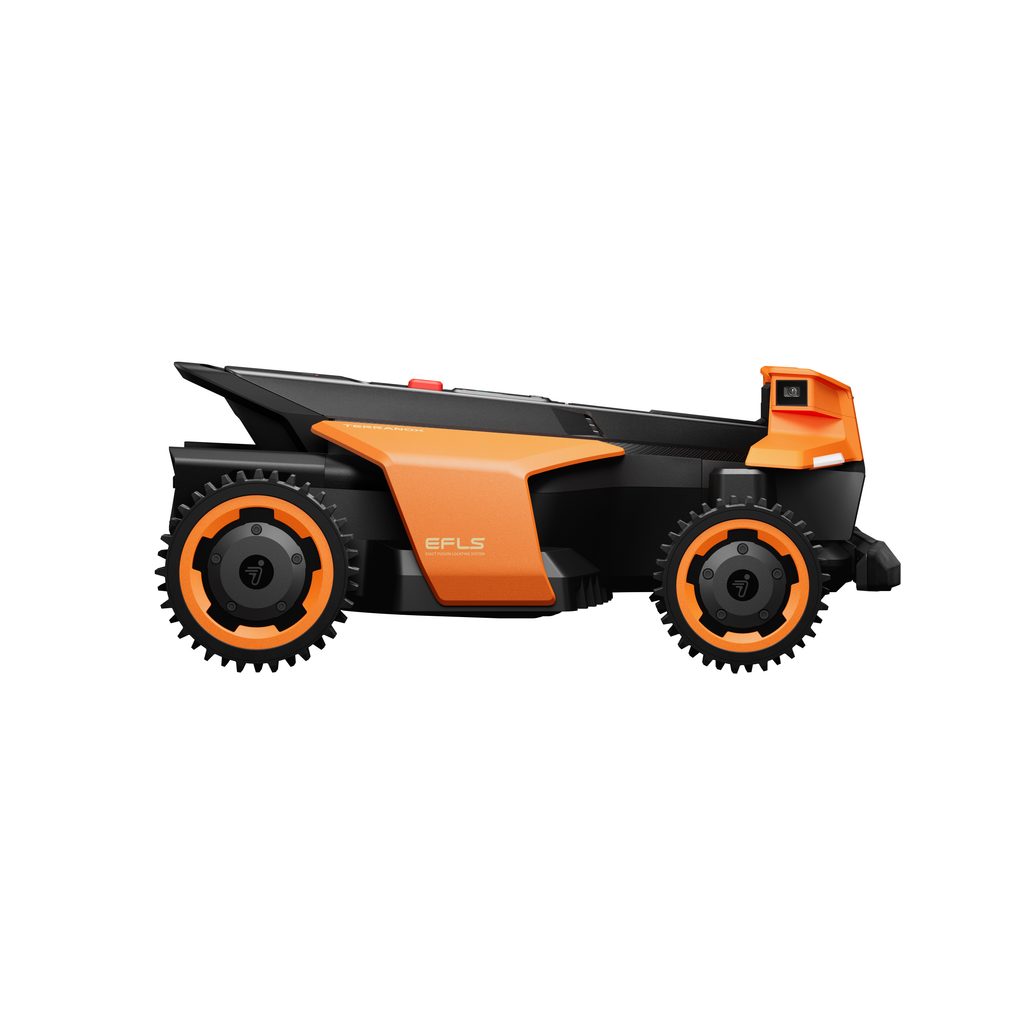

Navimow Terranox CM120M1E with Xero-Turn™ AWD all-wheel drive handles slopes up to 84% (40°) within the working area and on its boundaries. When activated, the TCS traction control system limits wheel slip and improves stability and manoeuvrability of the mower on wet, muddy and demanding terrain.
43 cm cutting width
at speeds up to 0.9 m/s
for large areas
12 cutting blades
two cutting discs
MowMentum™
Xero-Turn™ AWD drive
Four driven wheels and agile steering facilitate regular maintenance of complex sites.

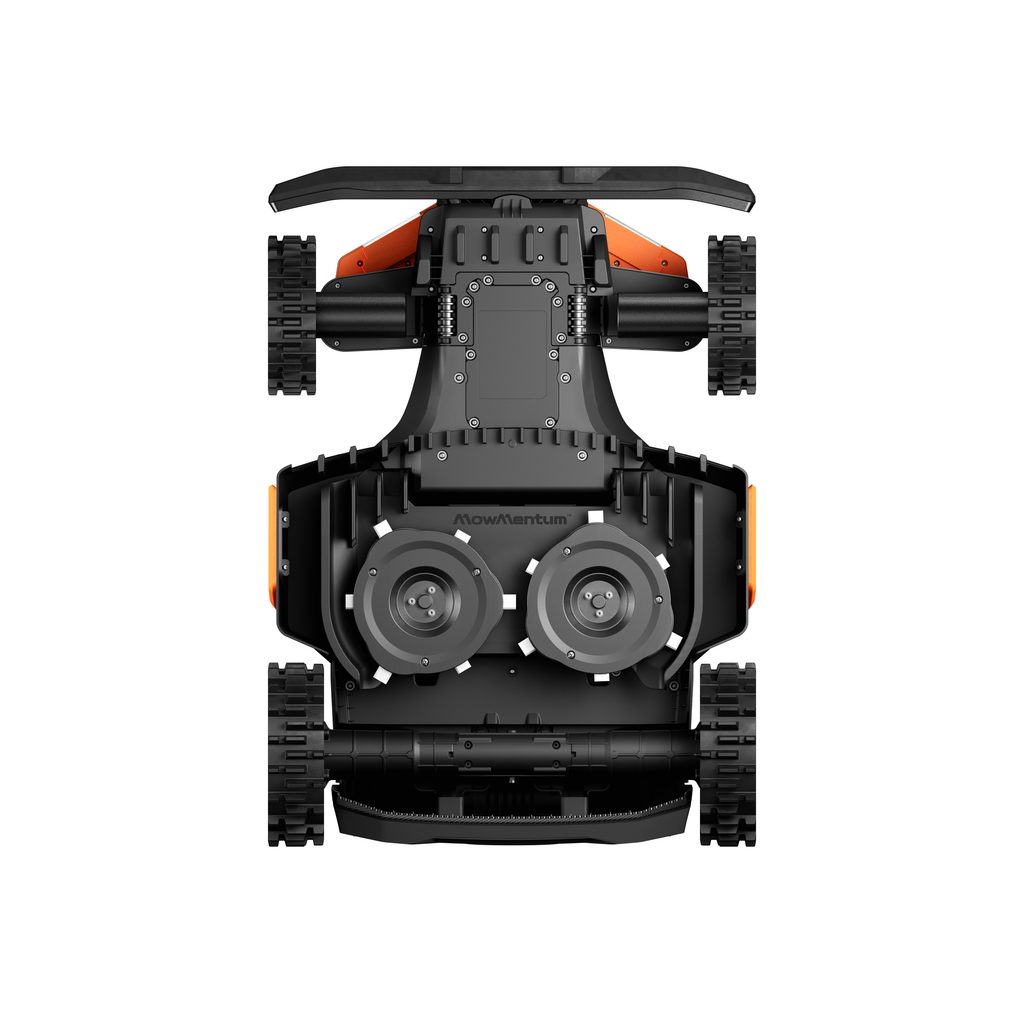

Dual MowMentum™ system
Two floating cutting discs, 12 blades and 43 cm cutting width for large areas.
TCS traction control
When activated, the TCS system improves traction and limits wheel slip on slippery surfaces.
360° OVERVIEW OF WORKING AREA
Sees obstacles. Adapts route.

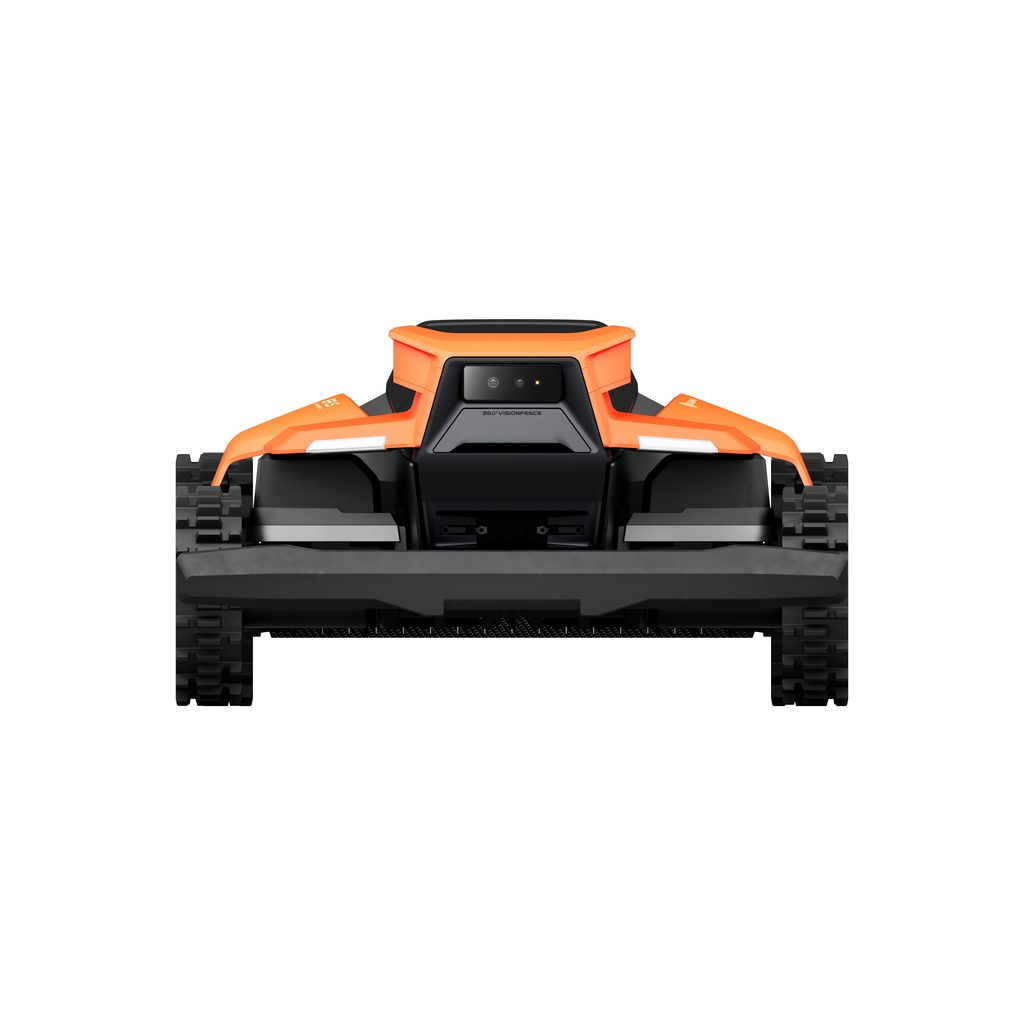

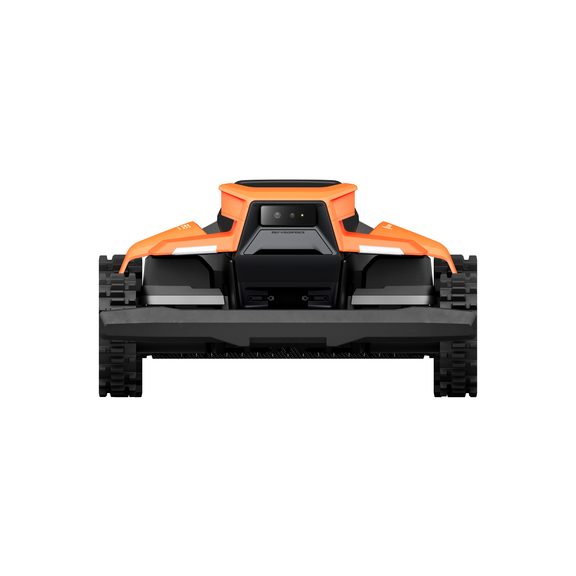

VisionFence™ combines three camera sensors with 360° coverage and ToF technology. It helps recognise objects and animals in the working area and adapt the route on large grassy areas.
Mows, recharges and continues
Li-ion battery with 20 Ah / 432 Wh capacity
approx. 145 min
mowing per charge
approx. 720 m²/h
mowing capacity per hour
approx. 145 min
charging
Runtime and performance are affected by site complexity, grass height and moisture.
READY FOR PROFESSIONAL DEPLOYMENT
From unboxing to first mow
Position the charging station, connect Terranox CM120M1E to the Navimow app and create a map of working zones. If network RTK is available, you can do without antenna installation; otherwise, use the supplied GNSS antenna.
Boundaries without wire
Define large grassy areas virtually, without installing perimeter wire.
Antenna according to signal coverage
Network RTK enables operation without antenna; if unavailable, use the one from the package.
Own charging location
Position the station on a flat surface with clear access according to the manual instructions.
Easy fleet management
Manage fleets of hundreds of mowers from a single platform. One operator can remotely monitor performance, assign tasks and adjust maps.
Professional mowing management from anywhere
In the Navimow app, you can adjust zones, mowing schedule and cutting height. The NavimowFleet™ service also enables remote monitoring of mower status and management of multiple machines. For navigation, it uses EFLS™ NRTK, which operates without an external antenna when the service is available.
Amazon Alexa
voice control
Google Assistant
voice control
Overview without phone

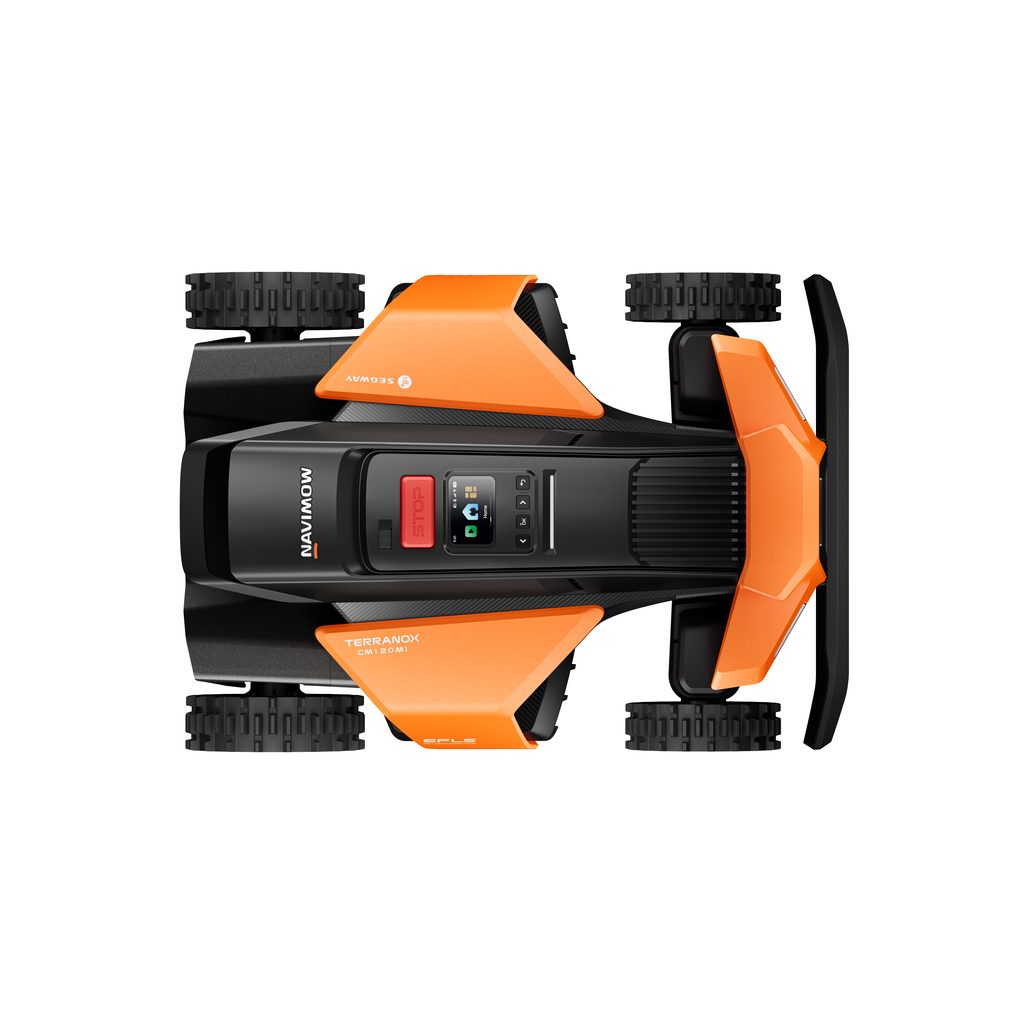

Built-in buttons and display enable basic control, status checking and mower settings directly on site.
Automatic charging
Find mower
Weather forecast
Start
Stop
Check battery
Technology for everyday professional operation
68 dB(A)
Measured sound power level according to manufacturer's specification.
IP66
Protection against dust and water facilitates routine maintenance.
OTA updates
Update mower software conveniently via the app.
GPS protection
Anti-theft protection with alarms and mower location when 4G service is active.
PRECISE GUIDANCE ALONG BOUNDARIES
Precise mowing along boundaries too
Navimow Terranox CM120M1E uses precise EFLS™ NRTK navigation and Xero-Turn™ AWD drive. Virtual boundaries enable planning mowing along the edges of large grassy areas.
Along fixed transitions
Virtual boundaries can be adapted to transitions between lawn, paths and other surfaces according to the specific site.
Precise route guidance
Precise positioning and agile steering help utilise the cutting width when working around working zone boundaries.
Give your Terranox CM120M1E a personal style
Create patterns in the lawn and customise the map of extensive grassy areas in the Navimow app.
Drawing feature
Custom pattern directly in the lawn
In the app, you choose a shape, logo or combination of letters and numbers. The mower temporarily leaves the selected area unmown, so the pattern stands out on the maintained lawn. You also set the number of days to preserve it.
Package contents
Complete the equipment for your site
Limited manufacturer's warranty 2 years
1 year on battery and power adapter
Choose according to area size
Terranox CM120M1E or CM240M1E?
| KEY COMPARISON |
Terranox CM120M1E
for areas up to 12,000 m²
|
Terranox CM240M1E
for areas up to 24,000 m²
|
|---|---|---|
| Positioning and navigation | EFLS™ NRTK + 360° Vision + VIO | EFLS™ NRTK + 360° Vision + VIO |
| Number of blades | 12 | 12 |
| Recommended area | 12,000 m² | 24,000 m² |
| Cutting height | 20–95 mm | 20–95 mm |
| Cutting width | 43 cm | 43 cm |
| Battery capacity | 20 Ah | 25 Ah |
