ROBOTIC MOWER WITHOUT PERIMETER WIRE

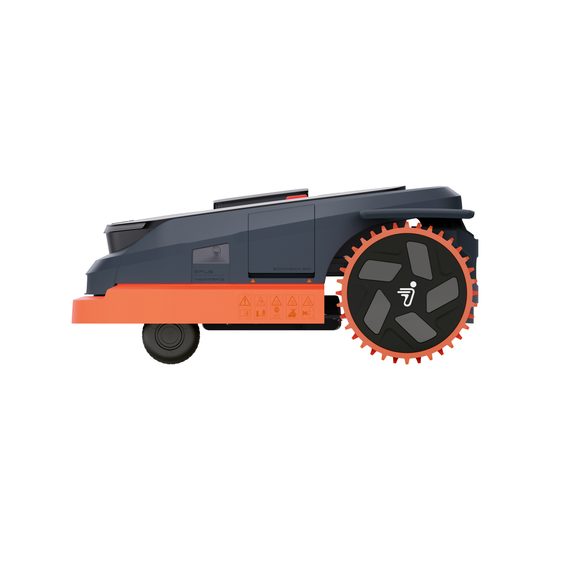

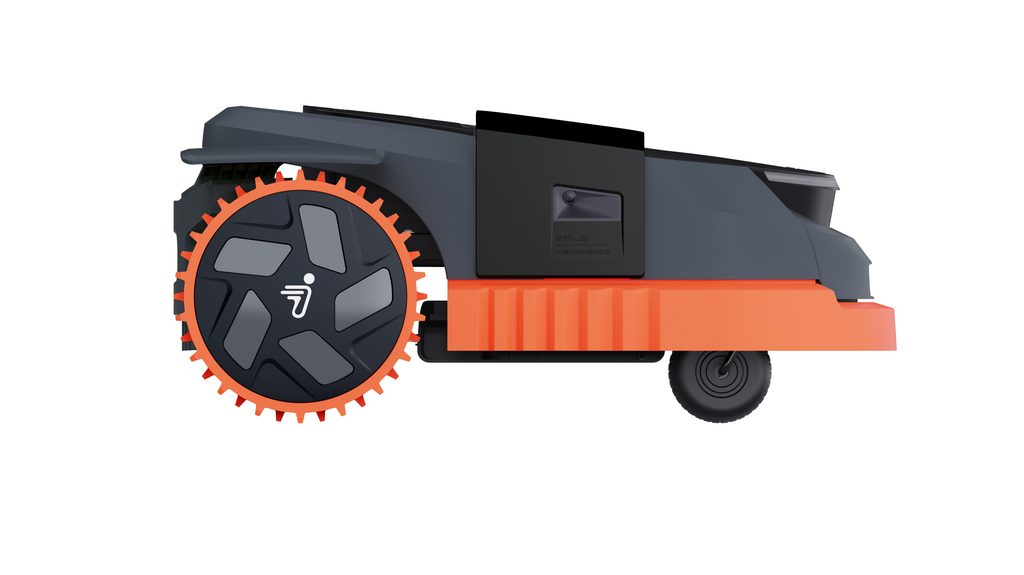

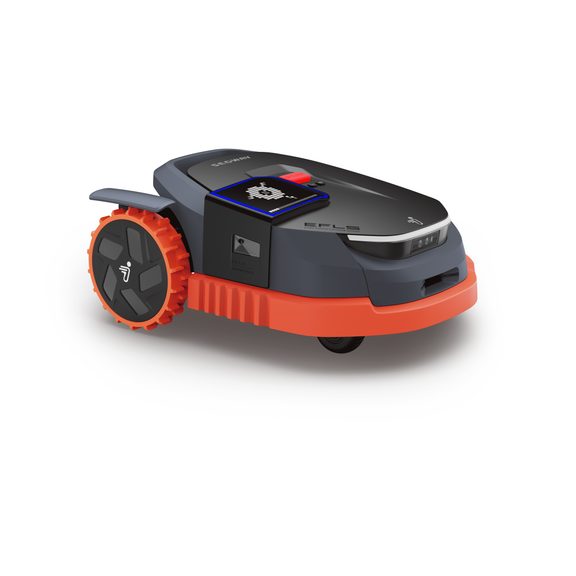

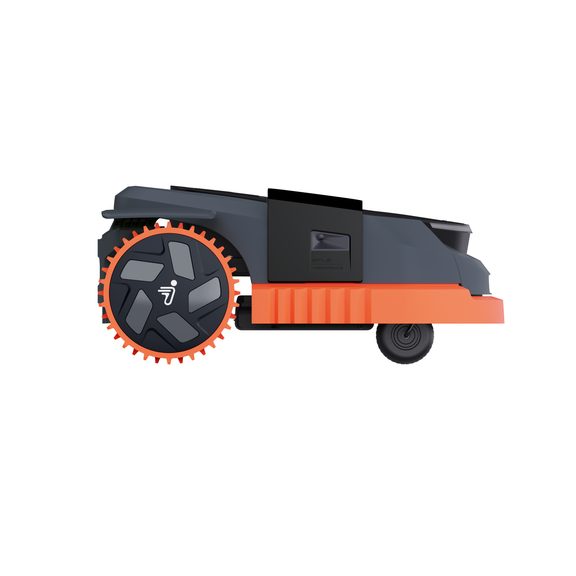

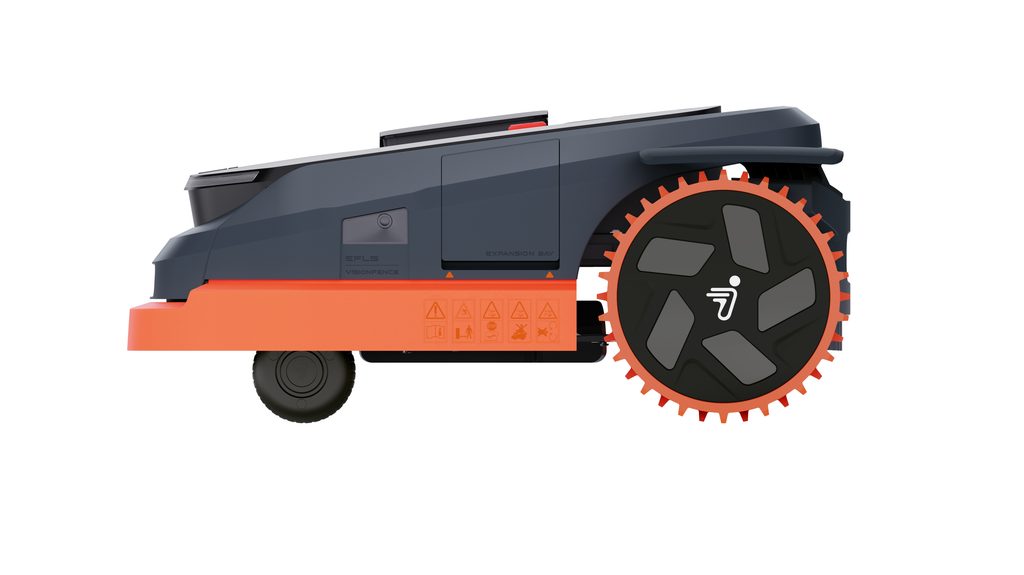

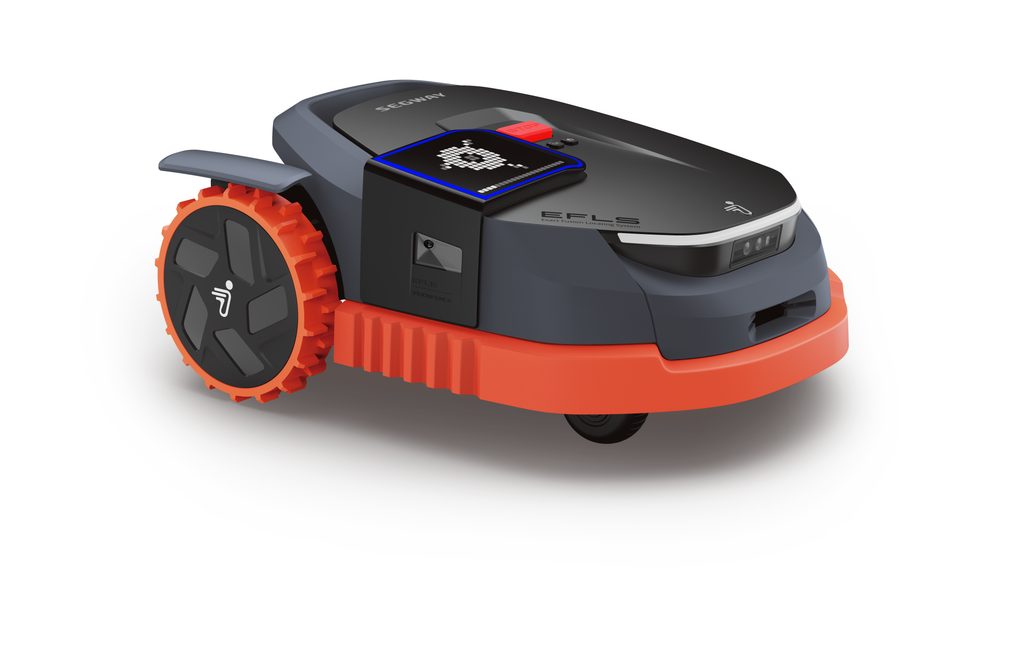

Navimow X390E
Lawn care powered by technology.
Free time in your hands.
Up to 10,000 m²
No perimeter
wire
Slopes up to 50%
VisionFence™ 2.0
EFLS™ 3.0 / RTK + camera vision
Precise navigation
in every direction
EFLS 3.0 combines satellite RTK with camera vision for more confident movement around trees and in complex gardens. It determines position with accuracy up to 1 cm.
RTK
satellite navigation
VSLAM
visual mapping
300 °
field of view
3 cameras
surroundings overview
IT STARTS SIMPLY
Your garden. Your boundaries.
With AI Assist Mapping, you create a garden map without laying perimeter wire. In the app, you mark lawn boundaries, protected flower beds and connections between individual areas. Installation also includes positioning the supplied GNSS antenna.
Connect
station and antenna
Start
AI mapping
Set
boundaries and schedule
Check the map on your phone and easily fine-tune it according to your garden layout.
CONFIDENCE IN COMPLEX GARDENS
Confident movement even on slopes
Your garden doesn't have to be perfectly flat. The Navimow X390E handles slopes up to 50% within the defined working area, and the TCS traction control system helps reduce wheel slip. Systematically planned routes support even mowing. At the working area boundary, expect a maximum slope of 25%.
23.7 cm cutting width
effective coverage
with every pass
6 cutting blades
Regular care for
your lawn
Brushless motor
Powers the cutting deck for regular lawn maintenance.

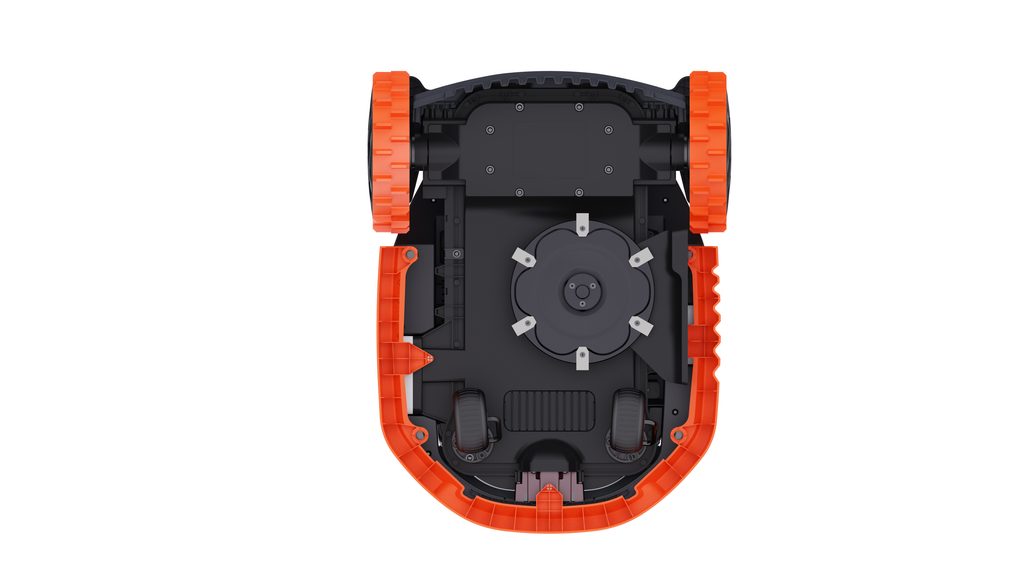

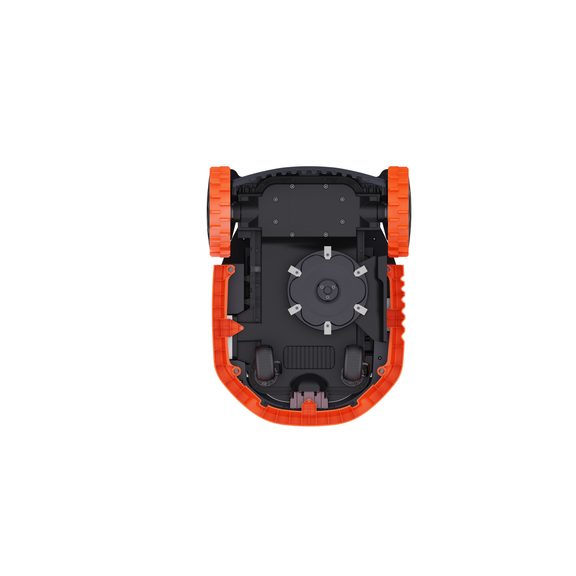

Thoughtful cutting system
Six blades and a cutting disc designed to reduce grass clogging.
TCS traction control
Intelligent wheel grip control helps reduce slippage on terrain.
SMART GARDEN MANAGEMENT
Every part of the garden has its own plan
Your front garden and back lawn can have their own care regime. In the app, you create separate zones, connect them with passages and set their schedule and mowing direction. Easily adjust cutting height in the range of 20–70 mm.
SEES WHAT TO AVOID
It sees obstacles. It adapts its route.
VisionFence 2.0 uses three cameras, a wide 300° field of view and a ToF sensor to recognise surroundings. Artificial intelligence helps evaluate obstacles and plan paths around garden furniture, toys and other objects. The mower adapts its route to the current situation on the lawn.
300°
camera field of view
ToF
distance sensing
from obstacles
Mows, recharges and continues
Li-ion battery with 12.8 Ah capacity
approx. 240 min
mowing per charge
approx. 350 m²/h
mowing capacity per hour
approx. 100 min
charging
Indicative values under test conditions. Battery life and performance are affected by garden complexity, grass height and moisture.
READY FOR YOUR GARDEN
From unboxing to first mow
Position the charging station and GNSS antenna, connect the X390E to the Navimow app and create a map. The app guides you through setup and helps verify satellite signal reception.
Boundaries without wire
Define the area virtually and save yourself laying perimeter wire.
Antenna in the right place
The satellite analyser in the app helps you choose a suitable location for the GNSS antenna.
Own charging location
Position the station on a flat surface with clear access according to the manual instructions.
Care according to weather
Mowing can be adapted to weather so the mower stays in the station during unfavourable conditions.
Lawn under control from anywhere
In the app, you can adjust schedules, zones and cutting height and check work progress. The X390E supports Wi-Fi, Bluetooth and 4G. Mobile data is free for the first five years with this model; thereafter its use is charged.
Amazon Alexa
voice control
Google Home
voice control

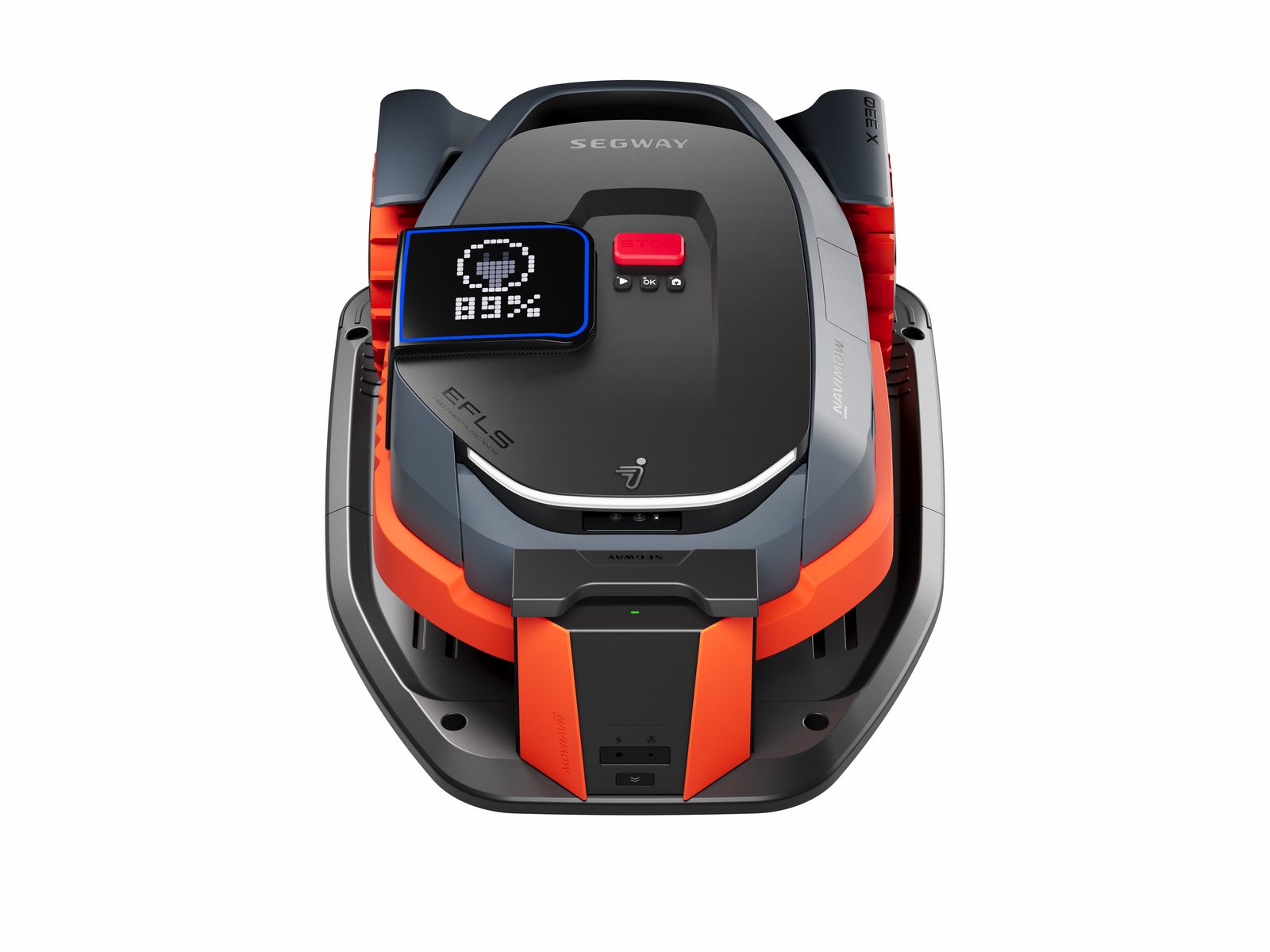

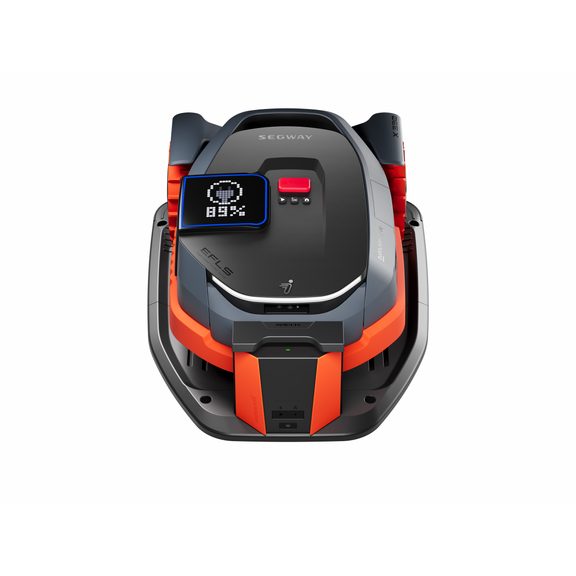

Overview even without phone
Buttons serve for basic control, the dot display shows current status using icons and animations.
Automatic charging
Find mower
Weather forecast
Start
Stop
Check battery
Convenience you'll appreciate every day
60 dB(A)
Low noise level for quieter moments in the garden.
IP66
Protection against dust and water makes routine maintenance easier.
OTA updates
Update the mower's software conveniently via the app.
GPS protection
Location and alarm in app when 4G service is active.
EDGE CARE
Neat lawn right to the edges
Adapt edge care to your garden layout. The X390E offers adjustable travel boundaries and the option to expand with a trimmer.
Over level transitions
For paving level with the lawn, you can set travel boundaries and allow mowing over the edge.
Option for supplementary trimming
The optional Trimmer for the X3 series helps with semi-automatic edge finishing. Sold separately.
Give your X390E a personal style
Use the lawn as a space for your own design and complement garden care with voice feedback of your choice.
Drawing function
Your design right in the lawn
In the app, you select a design or combination of letters and numbers. The mower temporarily skips this part, so after mowing the surrounding grass, the pattern stands out. You set the duration for preserving it yourself.
Voice feedback
Let it make itself heard
Choose from available voices or tones and let the mower announce its current status. Easily customise sound settings in the app to what suits you.
Package contents
Expand your equipment according to your garden
3-year warranty on mower
2 years on battery and power adapter
Compare mowing options
X390E or X450E?
| KEY COMPARISON |
X390E
for extensive lawns
|
X450E
4×4 drive and wider cutting width
|
|---|---|---|
| Positioning and navigation | Visual navigation + RTK | AI Vision + RGB + NetRTK |
| Number of blades | 6 | 12 |
| Recommended area | 10,000 m² | 5,000 m² |
| Cutting height | 20–70 mm | 20–95 mm |
| Cutting width | 23.7 cm | 43 cm |
| Battery capacity | 12.8 Ah | 15 Ah |
Safety documents
This product was launched before December 23, 2024.
