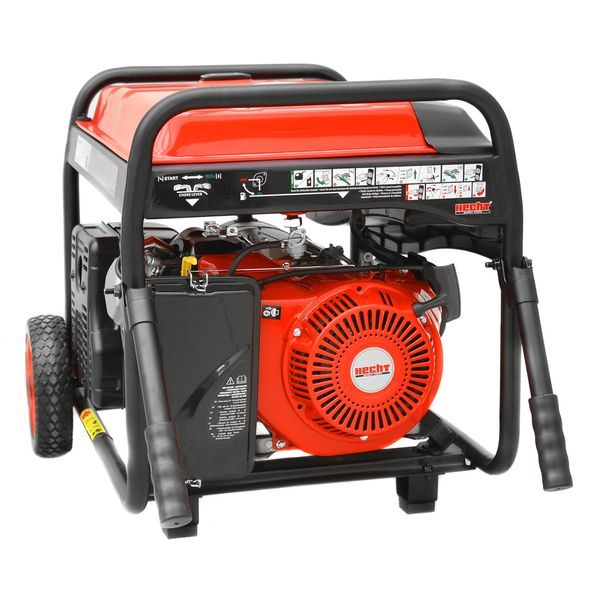

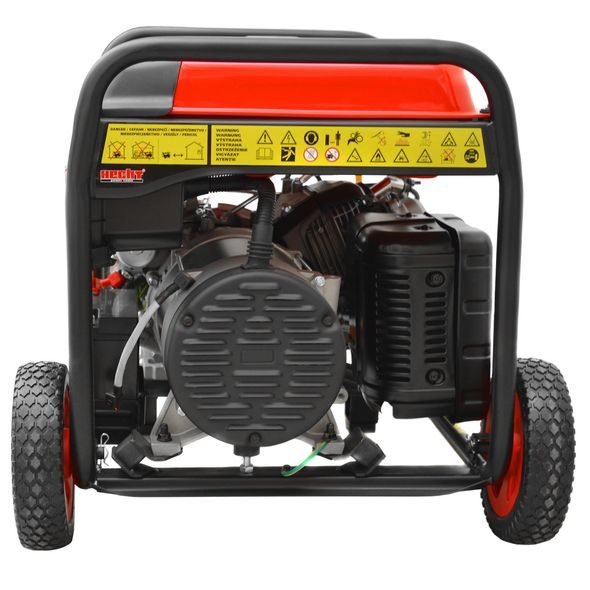

HECHT GG 11000 single-phase / three-phase power generator is significantly different in design from other conventional generators. If you are still hesitating whether you would better buy a single-phase or three-phase power generator, the GG 11000 hybrid generator is exactly the good you are looking for. Compared to conventional power centres, it allows easy switching between three-phase and single-phase mode. Just flip the switch. Therefore, it will be used especially on construction sites where it is necessary to supply three-phase and single-phase appliances. In three-phase mode, a 400 V socket can be used to connect appliances with an input power of up to 4600 W. In single-phase mode, either a conventional 230 V / 16 A socket (up to 3680 W) or an industrial 230 V / 32 A socket (up to 7360 W) can be used. The industrial socket is protected by a 32 A circuit breaker and can therefore also be connected to an electric welder. A 12 V / 100 A socket is also included.
The permanent output of the generator is 8000 W, the short-term maximum output is up to 8500 W.
Average fuel consumption:
At 50% load - 2.4 l/h
At 100% load - 3.8 l/h

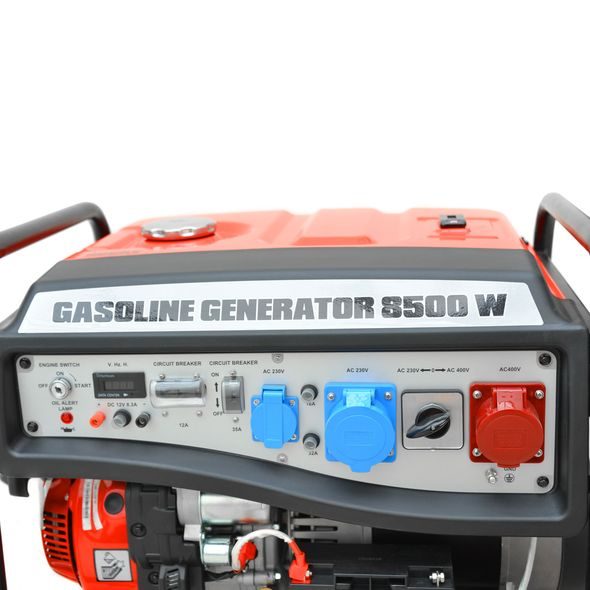

Type of sockets:
~400 V / 4600 W
or after switching
~2230 V / 7360 W (industrial) and ~2230 V / 3680 W
=12 V / 100 W
Type of sockets:
~400 V / 4600 W
or after switching
~2230 V / 7360 W (industrial) and ~2230 V / 3680 W
=12 V / 100 W
What makes this headquarters unique?
Of course, it is also possible to connect a single-phase appliance to a conventional three-phase control panel, but it can use just one-third of the power of a three-phase control panel. This is due to the fact that the appliance is connected only to one of the three excursions of the generator. Therefore, you can connect a single-phase appliance with a maximum power output of only about 2600 W to a conventional three-phase generator with the same power output as the HECHT GG 11000, compared to 7360 W for this generator.
